Product Details

Description



Features:

· 65,536×8 bit organization
· Access time: 80 ns (MAX.)
· Cycle time: 140 ns (MIN.)
· Single +5 V power supply
· Pin compatible with 1M standard SRAM
· Power consumption (MAX.):
    Operating: 440 mW
    Self refresh (TTL level): 5.5 mW
    Self refresh (CMOS level): 2.75 mW
· TTL compatible I/O
· 512 refresh cycles/8 ms (MAX.)
· Available for auto-refresh and self-refresh modes
· Packages:
    32-pin, 600-mil DIP
    32-pin, 525-mil SOP

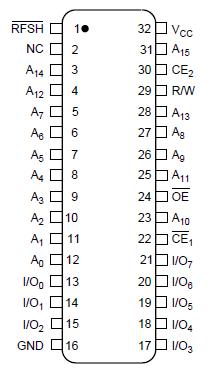

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT NOTE
Applied voltage on all pins VT 1.0 to +7.0 V 1
Output short circuit current IO 50 mA
Power dissipation PD 600 mW
Operating temperature Topr 0 to +70
Storage temperature Tstg 65 to +150

NOTE:
1. The maximum applicable voltage on any pin with respect to GND.



Description

The LH5P860 is a 512K-bit Pseudo-Static RAM organized as 65,536 ´ 8 bits. It is fabricated using silicon- gate CMOS process technology. With its built-in oscillator, it is easy to refresh memories without an external clock.
