LH5P1632

Features: · 32,768×16 bit organization· Access time: 80/150 ns (MAX.)· Cycle time: 140/210 ns (MIN.)· Single +5 V power supply· Power consumption (MAX.): Operating: 467.5/327.5 mW Standby: 16.5 mW· TTL compatible I/O· 256 refresh cycles/4 ms (MAX.)· Available for auto-refresh mode· Packages: 40-pi...

product image

LH5P1632 Picture
See larger image
SeekIC No. : 004394233 Detail

LH5P1632: Features: · 32,768×16 bit organization· Access time: 80/150 ns (MAX.)· Cycle time: 140/210 ns (MIN.)· Single +5 V power supply· Power consumption (MAX.): Operating: 467.5/327.5 mW Standby: 16.5 mW· ...

LH5P1632 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LH5P1632
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 32,768×16 bit organization
· Access time: 80/150 ns (MAX.)
· Cycle time: 140/210 ns (MIN.)
· Single +5 V power supply
· Power consumption (MAX.):
    Operating: 467.5/327.5 mW
    Standby: 16.5 mW
· TTL compatible I/O
· 256 refresh cycles/4 ms (MAX.)
· Available for auto-refresh mode
· Packages:
    40-pin, 600-mil DIP
    40-pin, 525-mil SOP




Pinout

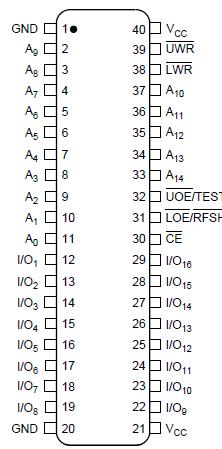

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT NOTE
Applied voltage on all pins VT 1.0 to +7.0 V 1
Output short circuit current IO 50 mA
Power dissipation PD 600 mW
Operating temperature Topr 0 to +70
Storage temperature Tstg 65 to +150

NOTE:
1. The maximum applicable voltage on any pin with respect to GND.



Description

The LH5P1632 is a 512K-bit Pseudo-Static RAM organized as 32,768×16 bits. It is fabricated using silicon-gate CMOS process technology.
