LH534A00

Features: ` 524,288 words *8 bit organization` Access time: 120 ns (MAX.)` Static operation` TTL compatible I/O` Three-state outputs` Single +5 V power supply` Power consumption: Operating: 357.5 mW (MAX.) Standby: 550 W (MAX.)` Package: 32-pin, 8*20 mm2 TSOP (Type I)PinoutSpecifications PARA...

product image

LH534A00 Picture
See larger image
SeekIC No. : 004394211 Detail

LH534A00: Features: ` 524,288 words *8 bit organization` Access time: 120 ns (MAX.)` Static operation` TTL compatible I/O` Three-state outputs` Single +5 V power supply` Power consumption: Operating: 357.5 mW...

LH534A00 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LH534A00
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 524,288 words *8 bit organization
` Access time: 120 ns (MAX.)
` Static operation
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` Power consumption:
    Operating: 357.5 mW (MAX.)
    Standby: 550 W (MAX.)
` Package:
    32-pin, 8*20 mm2 TSOP (Type I)

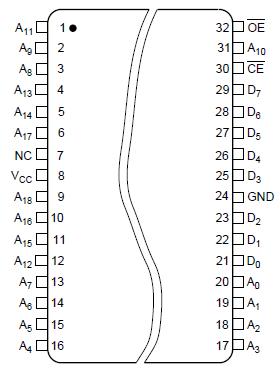

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Supply voltage Vcc 0.3 to +7.0 V
Input voltage
 VIN 0.3 to VCC + 0.3 V
Output voltage
 VOUT
 0.3 to VCC + 0.3

V


Operating temperature Topr
-20to +70
Storage temperature Tstg 65 to +150



Description

The LH534A00 is a 4M-bit mask-programmable ROM organized as 524,288×8 bits. It is fabricated using silicon-gate CMOS process technology.
