LH530800A-Y

Features: ` 131,072 words*8 bit organization` Access times: 500 ns (MAX.) at 2.6 V VCC < 4.5 V 150 ns (MAX.) at 4.5 V VCC 5.5 V` Low-power consumption: Operating: 193 mW (MAX.) Standby: 550 W (MAX.)` Static operation` Three-state outputs` Mask-programmable control pin: Pin 24 = OE/OE` Wide ra...

product image

LH530800A-Y Picture
See larger image
SeekIC No. : 004394193 Detail

LH530800A-Y: Features: ` 131,072 words*8 bit organization` Access times: 500 ns (MAX.) at 2.6 V VCC < 4.5 V 150 ns (MAX.) at 4.5 V VCC 5.5 V` Low-power consumption: Operating: 193 mW (MAX.) Standby: 550 W (...

LH530800A-Y Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LH530800A-Y
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 131,072 words*8 bit organization
` Access times:
    500 ns (MAX.) at 2.6 V VCC < 4.5 V
    150 ns (MAX.) at 4.5 V VCC 5.5 V
` Low-power consumption:
    Operating: 193 mW (MAX.)
    Standby: 550 W (MAX.)
` Static operation
` Three-state outputs
` Mask-programmable control pin:
    Pin 24 = OE/OE
` Wide range power supply:
    2.6 V to 5.5 V
` Packages:
    32-pin, 600-mil DIP
    32-pin, 525-mil SOP

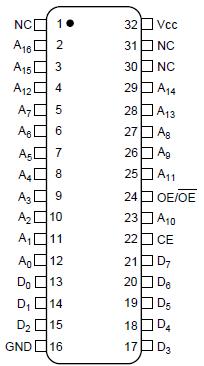

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
Supply voltage
Vcc
0.3 to +7.0
V



Description

The LH530800A-Y is a 1M-bit mask-programmable ROM organized as 131,072×8 bits. It is fabricated using silicon-gate CMOS process technology.
