Product Details

Description



Features:

` 3,145,728 *8 bit organization
` Access time: 150 ns (MAX.)
` Supply current:
    Operating: 65 mA (MAX.)
    Standby: 100 A (MAX.)
` TTL compatible I/O
` Three-state output
` Single +5 V Power supply
` Static operation
` When the address input at both A19 and A20 is high level, outputs become high impedance irrespective of CE or OE.
` Package:
    42-pin, 600-mil DIP
` Others:
    Non programmable
    Not designed or rated as radiation hardened
    CMOS process (P type silicon substrate)

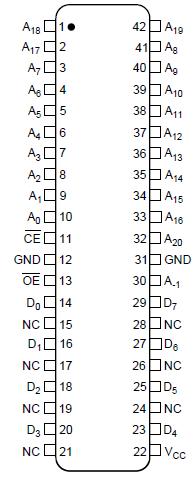

Pinout

  Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Supply voltage Vcc 0.3 to +7.0 V
Input voltage
VIN 0.3 to VCC + 0.3 V
Output voltage
VOUT
0.3 to VCC + 0.3

V


Operating temperature Topr
0 to +70
Storage temperature Tstg 65 to +150



Description

The LH5324000 is a 24M-bit CMOS mask-programmable ROM organized as 3,145,728 × 8 bits. It is fabricated using silicon-gate CMOS process technology.
