Product Details

Description



Features:

` 262,144 words * 8 bit organization
    (Byte mode)
    131,072 words*16 bit organization
    (Word mode)
` Access time: 120 ns (MAX.)
` Power consumption:
    Operating: 275 mW (MAX.)
    Standby: 550 W (MAX.)
` Mask-programmable control pin
    (for 40-pin DIP/40-pin SOP):
    Pin 1 = OE1/OE1/DC
    Pin 12 = OE/OE
` Static operation
` TTL compatible I/O
` Three-state outputs
` Single +5 V power supply
` Packages:
    40-pin, 600-mil DIP
    40-pin, 525-mil SOP
    48-pin, 12*18 mm2 TSOP (Type I)

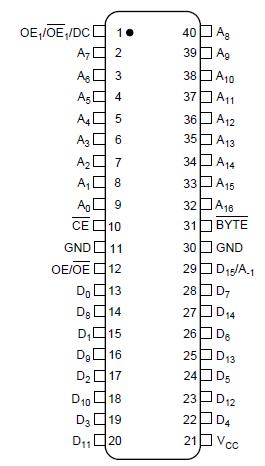

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
Supply voltage
Vcc
0.3 to +7.0
V
Input voltage
VIN
0.3 to VCC + 0.3
V
Output voltage
VOUT
0.3 to VCC + 0.3

V


Operating temperature
Topr

0 to +70
Storage temperature
Tstg
65 to +150



Description

The LH532000B-1 is a CMOS 2M-bit mask-programmableROM organized as 262,144 ×8 bits (Byte mode)or 131,072×16 bits (Word mode) that can be selected by BYTE input pin. It is fabricated using silicon-gate CMOS process technology.
