LH28F400SU-NC

• User-Configurable x8 or x16 Operation
• 5 V Write/Erase Operation (5 V VPP)
No Requirement for DC/DC Converter to Write/Erase
• 60 ns Maximum Access Time (VCC = 5.0 V ± 0.25 V)
• 80ns Maximum Access Time (VCC = 5.0 V ± 0.5 V)
• 32 Independently Lockable Blocks (16K)
• 100,000 Erase Cycles per Block
• Automated Byte Write/Block Erase
Command User Interface
Status Register
RY/BY Status Output
• System Performance Enhancement
Erase Suspend for Read
Two-Byte Write
Full Chip Erase
• Data Protection
Hardware Erase/Write Lockout during Power Transitions
Software Erase/Write Lockout
• Independently Lockable for Write/Erase on Each Block (Lock Block and Protect Set/Reset)
• 5 A (Typ.) I_CC in CMOS Standby
• 0.2 A (Typ.) Deep Power-Down
• State-of-the-Art 0.45 m ETOX™ Flash Technology

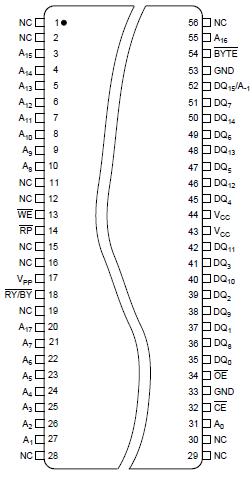

• 56-Pin, 1.2 mm * 14 mm * 20 mm TSOP (Type I) Package
• 48-Pin, 1.2 mm * 12 mm * 18 mm TSOP (Type I) Package
• 44-Pin, 600-mil SOP Package

Temperature under bias ......................... 0°C to +80°C
Storage temperature ......................... -65°C to +125°C

NOTES:
1. Operating temperature is for commercial product defined by this specification.
2. Minimum DC voltage is -0.5 V on input/output pins. During transitions, this level may undershoot to -2.0 V for periods < 20 ns.Maximum DC voltage on input/output pins is V_CC + 0.5 V which, during transitions, may overshoot to V_CC + 2.0 V for periods < 20 ns.
3. Output shorted for no more than one second. No more than one output shorted at a time.
