Product Details

Description



Features:

· Dot matrix LCD segment driver with 64 channel output
· Input and Output signal
- Input: 8 bit parallel display data
   Control signal from MPU
   Splitted bias voltage (V1R, V1L, V2R, V2L, V3R. V3L, V4R, V4L)
- Output: 64 channel waveform for LCD driving.
· Display data is stored in display data RAM from MPU.
· Interface RAM
- Capacity: 512 bytes (4096 bits)
- RAM bit data: RAM bit data = 1:ON
  RAM bit data- = 0:OFF
· Applicable LCD duty: 1/32~1/64
· LCD driving voltage: 8V~17V(VDD-VEE)
· Power supply voltage: + 5V±10%

Driver
Controller
COMMON
SEGMENT
KS0107B
Other KS0108B
MPU

· High voltage CMOS process.
· 100QFP and bare chip available.

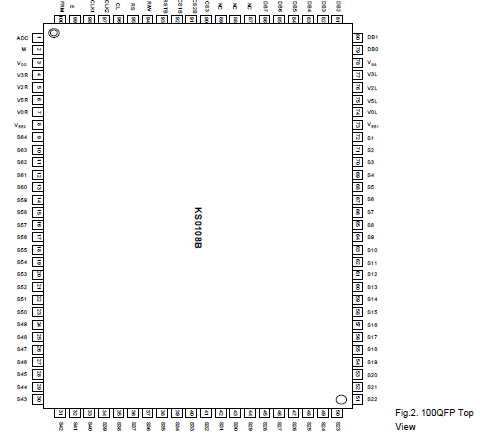

Pinout

Connection Diagram


Description

The KS0108B is a LCD driver LSl with 64 channel output for dot matrix liquid crystal graphic display system. This device consists of the display RAM, 64 bit data latch 64 bit drivers and decoder logics. It has the internal display RAM for storing the display data transferred from a 8 bit micro controller and generates the dot matrix Iiquid crystal driving signals corresponding to stored data.The KS0108B composed of the liquid crystal display system in combination with the KS0107B (64 common driver)
