Product Details

Description



Features:

• Macrovision revision 6.0 anti-taping support
• 8-bit parallel CCIR 656 CbYCr input format
• Synchronizes to CCIR 656 AVE time reference codes for horizontal and vertical timing generation in slave mode operation
• Generates HSYN and FIELD signals in master mode operation
• Programmable subcarrier frequency, SCH phase, and synchronous field display to support MPEG II picture-coding-extension
• Optional subcarrier genlock to analog f sc_ref reference
• 650 kHz or 1.3 MHz chrominance bandwidth selection
• Support NTSC, PAL, PAL-M and PAL-N
• Switchable pedestal with gain compensation
• Selectable 37 nsec YC delay pre-compensation
• Video outputs meet SMPTE 170M or CCIR 624 spec
• 27 MHz DAC conversion rate
• Triple 10-bit DAC's for simultaneous S-video and composite output
• 2 -wire serial host interface
• 8 general purpose I/O pins
• JTAG test interface
• Single 5 V supply with power down mode
• 44-pin PLCC package




Application

• Settop Box Video Encoding
• MPEG Playback
• Multimedia



Pinout

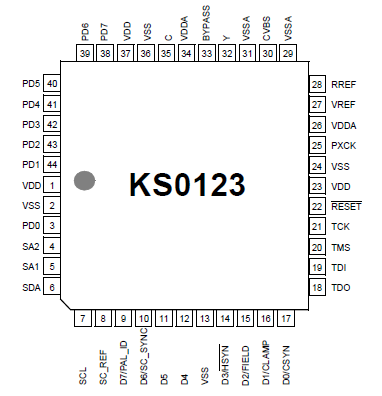

  Connection Diagram


Specifications

Characteristics
Symbol
Min
Max
Unit
Supply Voltage (Measured to GND)
VDD
-0.5
+7.0
V
Digital Input Applied Voltage2
VI
GND-0.5
VDD+0.5
V
Digital Input Forced Current3,4
AI
-100
100
mA
Digital Output Applied Voltage2
VO
GND-0.5
VDD+0.5
V
Digital Output Forced Current3,4
AO
-100
100
mA
Digital Short Circuit Duration (single high output to VSS)
TDSC
1
sec
Analog Short Circuit Duration (single output to VSSA)
TASC
infinite
sec
Ambient Operating Temperature Range
Ta
-60
+130
Storage Temperature Range
Tstg
-65
+150
Junction Temperature
Tj
+150
Soldering Temperature (10 sec., 1/4" from pin)
Tsol
+300
Vapor Phase Soldering (1 min.)
Tvsol
+220
Storage Temperature
Tsto
-65
+150


Notes: 1. Absolute maximum ratings are limiting values applied individually, while all other parameters are within specified operating conditions. Functional operation under any of these conditions is NOT implied.
2. Applied voltage must be current limited to specified range, and measured with respect to VSS.
3. Forcing voltage must be limited to a specified range.
4. Current is specified as conventional current, flowing into the device.




Description

The KS0123 multi-standard video encoder converts CCIR 656 8-bit multiplexed digital component video into analog baseband signals. It outputs composite video (CVBS) and S-Video simultaneously at three analog output pins.

The encoder implements Macrovision revision 6.0 antitaping scheme. Additionally,KS0123 contains a color subcarrier genlock to support analog/digital video splicing.

The video outputs conform to either SMPTE 170M (NTSC) or CCIR 624 (PAL) standards.
