KS0118C

Features: · NTSC Video Signal Input· Line-locked Sync and Clock Generation· Line to Line Jitter < 20 nsec· Differential Gain 2% Differential Phase 2O· Programmable Sample Clock Frequency from 25 to 30 MHz· Built-in 8 Bit CMOS Analog to Digital Converter· Programmable Gain Control and Automatic ...

product image

KS0118C Picture
See larger image
SeekIC No. : 004387435 Detail

KS0118C: Features: · NTSC Video Signal Input· Line-locked Sync and Clock Generation· Line to Line Jitter < 20 nsec· Differential Gain 2% Differential Phase 2O· Programmable Sample Clock Frequency from 25 ...

KS0118C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS0118C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· NTSC Video Signal Input
· Line-locked Sync and Clock Generation
· Line to Line Jitter < 20 nsec
· Differential Gain 2% Differential Phase 2O
· Programmable Sample Clock Frequency from 25 to 30 MHz
· Built-in 8 Bit CMOS Analog to Digital Converter
· Programmable Gain Control and Automatic DC Offset Control for Video Signal Input
· Programmable PLL Time Constants for Tracking Different Input Types
· Correctly Tracks Line Drop-outs
· Provides a Microprocessor 3 Wire Serial Interface
· Built-in Decimation Filter Single Power Supply: +5V


Pinout

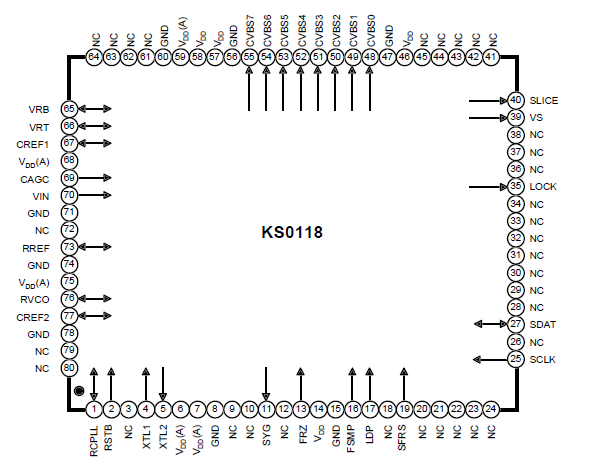

Connection Diagram


Specifications

Characteristic
Symbol
Value
Unit
Supply Voltage

Voltage on any Digital Pin

Operating Temperature

Storage Temperature
VDD

VPIN

TOPR

TSTG
-0.5 ~+7.0

GND ~ VDD

- 20 ~ + 75

-55 ~ +125
V

V






Description

The KS0118C is a CMOS integrated circuit designed for the GEN LOCK and ND Conversion.

KS0118C is a Monolithic IC that enabled an analog NTSC composite video signal to digitize at a clock rate that is synchronized and locked to the incoming video horizontal line frequency.

KS0118C includes clamping function, 8-bit digitizing and creation of a line locked sampling clock.

KS0118C is possible to correspond to the video signal system of LDP by the use of KA9413, KA 9414-D ICS together, which is designed for the Digital Video Signal Processor.
