Features:

• Synchronous Operation.
• On-Chip Address Counter.
• Write Self-Timed Cycle.
• On-Chip Address and Control Registers.
• Single 3.3V ±5% Power Supply.
• 5V Tolerant Inputs except I/O Pins.
• Byte Writable Function.
• Global Write Enable Controls a full bus-width write.
• Power Down State via ZZ Signal.
• Asynchronous Output Enable Control.
• ADSP, ADSC, ADV Burst Control Pins.
• LBO Pin allows a choice of either a interleaved burst or a linear burst.
• Three Chip Enables for simple depth expansion with No Data Contention.
• TTL-Level Three-State Output.
• 100-TQFP-1420A



Pinout

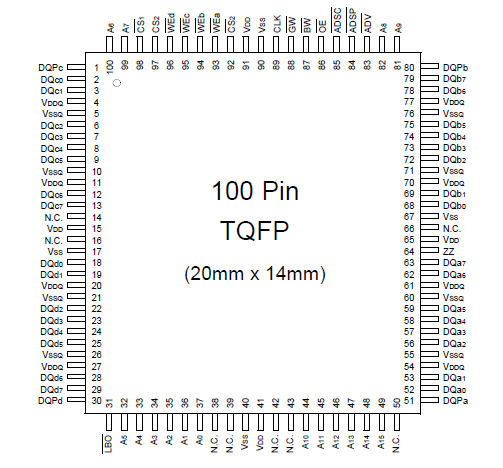

  Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
Voltage on VDD Supply Relative to VSS
VDD
-0.3 to 4.6
V
Voltage on VDDQ Supply Relative to VSS
VDDQ
VDD
V
Voltage on Input Pin Relative to VSS
VIN
-0.3 to 6.0
V
Voltage on I/O Pin Relative to VSS
VIO
-0.3 to VDDQ+0.5
V
Power Dissipation
PD
1.2
W
Storage Temperature
TSTG
-65 to 150
Operating Temperature
TOPR
0 to 70
Storage Temperature Range Under Bias
TBIAS
-10 to 85



Description

The KM736V687 is 2,359,296 bits Synchronous Static Random Access Memory designed to support zero wait state performance for advanced Pentium/Power PC based system. And with CS1 high, ADSP is blocked to control signals.

KM736V687 can be organized as 64K words of 36 bits. And it integrates address and control registers, a 2-bit burst address counter and high output drive circuitry onto a single integrated circuit for reduced components counts implementation of high performance cache RAM applications.

Write cycles are internally self-timed and synchronous.

The self-timed write feature eliminates complex off chip write pulse shaping logic, simplifying the cache design and further reducing the component count.

Burst cycle can be initiated with either the address status processor(ADSP) or address status cache controller(ADSC) inputs. Subsequent burst addresses are generated internally in the system¢s burst sequence and are controlled by the burst address advance(ADV) input.

ZZ pin controls Power Down State and reduces Stand-by current regardless of CLK.

The KM736V687 is implemented with SAMSUNG¢s high performance CMOS technology and is available in a 100pin TQFP package. Multiple power and ground pins are utilized to m nimize ground bounce.
