• Synchronous Operation.
• On-Chip Address Counter.
• Write Self-Timed Cycle.
• On-Chip Address and Control Registers.
• VDD= 3.3V+0.3V/-0.165V Power Supply.
• VDDQ Supply Voltage 3.3V+0.3V/-0.165V for 3.3V I/O or 2.5V+0.4V/-0.125V for 2.5V I/O.
• 5V Tolerant Inputs except I/O Pins.
• Byte Writable Function.
• Global Write Enable Controls a full bus-width write.
• Power Down State via ZZ Signal.
• Asynchronous Output Enable Control.
• ADSP, ADSC, ADV Burst Control Pins.
• LBO Pin allows a choice of either a interleaved burst or a linear burst.
• Three Chip Enables for simple depth expansion with No Data Contention.
• TTL-Level Three-State Output.
• 100-TQFP-1420A
PARAMETER |
SYMBOL |
RATING |
UNIT |
Voltage on VDD Supply Relative to VSS |
VDD |
-0.3 to 4.6 |
V |
Voltage on VDDQ Supply Relative to VSS |
VDDQ |
VDD |
V |
Voltage on Input Pin Relative to VSS |
VIN |
-0.3 to 6.0 |
V |
Voltage on I/O Pin Relative to VSS |
VIO |
-0.3 to VDDQ + 0.5 |
V |
Power Dissipation |
PD |
1.2 |
W |
Storage Temperature |
TSTG |
-65 to 150 |
|
Operating Temperature |
TOPR |
0 to 70 |
|
Storage Temperature Range Under Bias |
TBIAS |
-10 to 85 |
The KM732V787 is 4,194,304 bits Synchronous Static Random Access Memory designed to support zero wait state performance for advanced Pentium/Power PC based system. And with CS1 high, ADSP is blocked to control signals.
The KM732V787 can be organized as 128K words of 32 bits. And it integrates address and control registers, a 2-bit burst address counter and high output drive circuitry onto a single integrated circuit for reduced components counts implementation of high performance cache RAM applications.
Write cycles are internally self-timed and synchronous. The self-timed write feature eliminates complex off chip write pulse shaping logic, simplifying the cache design and further reducing the component count.
Burst cycle can be initiated with either the address status processor(ADSP) or address status cache controller(ADSC) inputs. Subsequent burst addresses are generated internally in the system¢s burst sequence and are controlled by the burst address advance(ADV) input.
ZZ pin of KM732V787 controls Power Down State and reduces Stand-by current regardless of CLK.

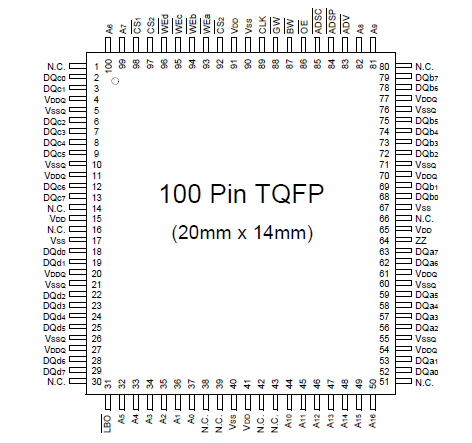

The KM732V787 is implemented with SAMSUNG¢s high performance CMOS technology and is available in a 100pin TQFP package. Multiple power and ground pins are utilized to minimize ground bounce.
