Product Details

Description



Features:

• Synchronous Operation.
• 2 Stage Pipelined operation with 4 Burst.
• On-Chip Address Counter.
• Self-Timed Write Cycle.
• On-Chip Address and Control Registers.
• VDD=3.3V-5%/+10% Power Supply
• I/O Supply Voltage : 3.3V-5%/+10%
• 5V Tolerant Inputs except I/O Pins.
• Byte Writable Function.
• Global Write Enable Controls a full bus-width write.
• Power Down State via ZZ Signal.
• Asynchronous Output Enable Control.
• ADSP, ADSC, ADV Burst Control Pins.
• LBO Pin allows a choice of either a interleaved burst or a linear burst.
• Three Chip Enables for simple depth expansion with No Data Contention ; 2cycle Enable, 1cycle Disable.
• L-Level Three-State Output.
• 100-QFP-1420C
• 100-TQFP-1420A



Pinout

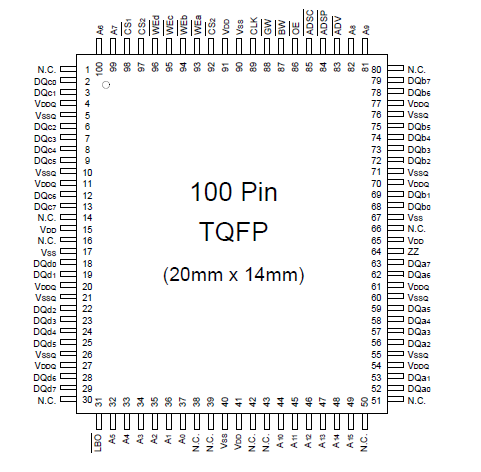

  Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
Voltage on VDD Supply Relative to VSS
VDD
-0.3 to 4.6
V
Voltage on VDDQ Supply Relative to VSS
VDDQ
VDD
V
Voltage on Input Pin Relative to VSS
VIN
-0.3 to 6.0
V
Voltage on I/O Pin Relative to VSS
VIO
-0.3 to VDDQ+0.5
V
Power Dissipation
PD
1.2
W
Storage Temperature
TSTG
-65 to 150
Operating Temperature
TOPR
0 to 70
Storage Temperature Range Under Bias
TBIAS
-10 to 85



Description

The KM732V688 is a 2,097,152 bit Synchronous Static Random Access Memory designed for high performance second level cache of Pentium and Power PC based System.

It is organized as 64K words of 32 bits and integrates address and control registers, a 2-bit burst address counter and added some new functions for high performance cache RAM applications; GW, BW, LBO, ZZ.

Write cycles are internally self-timed and synchronous.

Full bus-width write is done by GW, and each byte write is performed by the combination of WEx and BW when GW is high. And with CS1 high, ADSP is blocked to control signals.

Burst cycle can be initiated with either the address status processor(ADSP) or address status cache controller(ADSC) inputs. Subsequent burst addresses are generated internally in the system¢s burst sequence and are controlled by the burst address advance(ADV) input.

LBO pin is DC operated and determines burst sequence(linear or interleaved).

ZZ pin controls Power Down State and reduces Stand-by current regardless of CLK.

The KM732V688 is fabricated using SAMSUNG¢s high performance CMOS technology and is available in a 100pin QFP/ TQFP package. Multiple power and ground pins are utilized to minimize ground bounce.
