KM684002

Features:

°‹  Fast Access Time 17,20,25ß¿(Max.)
°‹  Low Power Dissipation
    Standby (TTL)      : 60ßÃ(Max.)
                   (CMOS) : 10ßÃ(Max.)
   Operating KM684002 - 17 : 180ßÃ(Max.)
                    KM684002 - 20 : 170ßÃ(Max.)
                    KM684002 - 25 : 160ßÃ(Max.)
°‹  Single 5.0V±10% Power Supply
°‹  TTL Compatible Inputs and Outputs
°‹  I/O Compatible with 3.3V Device
°‹  Fully Static Operation
   - No Clock or Refresh required
°‹  Three State Outputs
°‹  Center Power/Ground Pin Configuration
°‹  Standard Pin Configuration
                          KM684002J : 36-SOJ-400

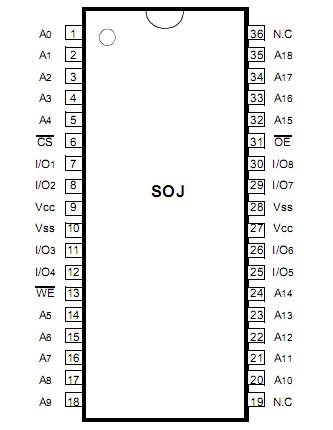

Pinout




Description

The KM684002 is a 4,194,304-bit high-speed Static Random Access Memory organized as 524,288 words by 8 bits. The KM684002 uses 8 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The device is fabricated using Samsung's advanced CMOS process and designed for high-speed circuit technology. It is particularly well suited for use in high-density high-speed system applications. The KM684002 is packaged in a 400 mil 36-pin plastic SOJ.
