KM681000C

Features: · Process Technology: TFT· Organization: 128K x8· Power Supply Voltage: 4.5~5.5V· Low Data Retention Voltage: 2V(Min)· Three state output and TTL Compatible· Package Type: 32-DIP-600, 32-SOP-525, 32-TSOP1-0820F/RPinoutSpecifications Item Symbol Ratings Unit Remark Voltage on ...

product image

KM681000C Picture
See larger image
SeekIC No. : 004386151 Detail

KM681000C: Features: · Process Technology: TFT· Organization: 128K x8· Power Supply Voltage: 4.5~5.5V· Low Data Retention Voltage: 2V(Min)· Three state output and TTL Compatible· Package Type: 32-DIP-600, 32-S...

KM681000C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KM681000C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Process Technology: TFT
· Organization: 128K x8
· Power Supply Voltage: 4.5~5.5V
· Low Data Retention Voltage: 2V(Min)
· Three state output and TTL Compatible
· Package Type: 32-DIP-600, 32-SOP-525, 32-TSOP1-0820F/R

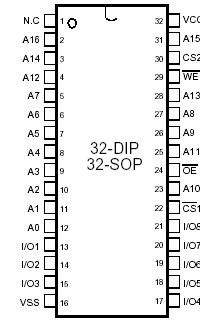

Pinout

Connection Diagram


Specifications

Item Symbol Ratings Unit Remark
Voltage on any pin relative to Vss VIN, VOUT -0.5 to 7.0 V -
Voltage on Vcc supply relative to Vss VCC -0.5 to 7.0 V -
Power Dissipation PD 1.0 W -
Storage temperature TSTG -65 to 150 °C -
Operating Temperature TA 0 to 70 °C KM681000CL
-40 to 85 °C KM681000CLI
Soldering temperature and time TSOLDER 260°C, 10sec (Lead Only) - -



Description

The KM681000C families are fabricated by SAMSUNG¢s advanced CMOS process technology. The families support various operating temperature ranges and have various package types for user flexibility of system design. The families also support low data retention voltage for battery backup operation with low data retention current.
