Product Details

Description

Features:

Fast Access Time 12, 15, 20ns(Max.)
Low Power Dissipation
    Standby (TTL)      : 25mA(Max.)
                  (CMOS) :   8mA(Max.)
   Operating KM681002A - 12 : 170mA(Max.)
                    KM681002A - 15 : 165mA(Max.)
                    KM681002A - 20 : 160mA(Max.)
Single 5.0V°10% Power Supply
TTL Compatible Inputs and Outputs
I/O Compatible with 3.3V Device
Fully Static Operation
   - No Clock or Refresh required
Three State Outputs
Center Power/Ground Pin Configuration
Standard Pin Configuration
                    KM681002AJ : 32-SOJ-400
                    KM681002AT: 32-TSOP2-400F

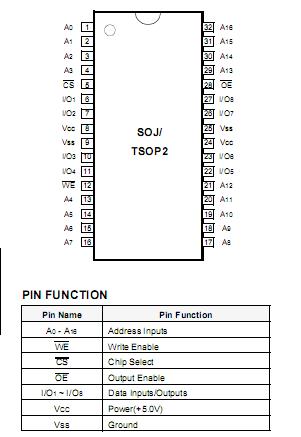

Pinout

Connection Diagram

Specifications

Parameter		Symbol	Rating	Unit
Voltage on Any Pin Relative to V_SS		V_IN, V_OUT	-0.5 to 7.0	V
Voltage on V_CC Supply Relative to V_SS		V_CC	-0.5 to 7.0	V
Power Dissipation		P_D	1.0	W
Storage Temperature		T_STG	-65 to 150
Operating Temperature	Commercial	T_A	0 to 70
Operating Temperature	Industrial	T_A	-40 to 85

Description

The KM681002A is a 1,048,576-bit high-speed Static Random Access Memory organized as 131,072 words by 8 bits. The KM681002A uses 8 common input and output lines and has an output enable pin which operates faster than address access time at read cycle.

The device is fabricated using Samsungs advanced CMOS process and designed for high-speed circuit technology. It is particularly well suited for use in high-density high-speed system applications. The KM681002A is packaged in a 400mil 32-pin plastic SOJ or TSOP2 forward.
