Product Details

Description



Features:

·250MHz-3dB bandwidth.
·Super High Speed tPD=2.7nS(Typ.) at VCC=5V.
·On Resistance ROH=3 (Typ.) at VCC=4.5V (VIN=0V, IIN=30mA.)
·Wide Operating Voltage Range : VCC(opr)=1.65~5.5V.
·T.H.D : THD=0.11%(Typ.) at VCC=5V.

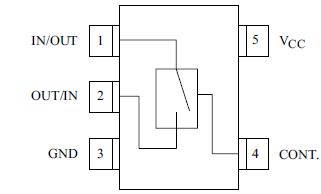

Pinout

Connection Diagram


Specifications

CHARACTERISTIC
SYMBOL
RATING
UNIT
DC Supply Voltage
VCC
-0.5~7.0
V
Control Input Voltage
VIN
-0.5~7.0
V
Swith I/O Voltage
VI/O
-0.5~7.0
V
Control Diode Current
ICK
-50
mA
Output Diode Current
IOK
±50
mA
DC VCC/Ground Current
ICC
±100
mA
Power Dissipation
PD
200
mW
Storage Temperature Range
Tstg
-65 150
Lead Temperature (10s)
TL
260
