Product Details

Description

Features:

`High output drive : ±24mA(min.) @V_CC=3V.
`High Speed : t_pd=3.7ns(typ.) @VCC=5V, 50pF.
`Wide Operating Voltage Range : V_CC(opr)=1.65~5.5V.
`High Latch-Up Immunity : Higher than or equal to ±500mA.
`High ESD : Higher than or equal to ±200V(JEITA)
......: Higher than or equal to ±2000V(MIL)
`Power down protection is provided on all inputs and outputs

Pinout

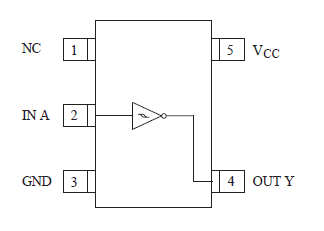

Connection Diagram

Specifications

CHARACTERISTIC	SYMBOL	RATING	UNIT
Supply Voltage Range	V_CC	-0.5~6	V
DC Input Voltage	V_IN	-0.5~6	V
DC Output Voltage	V_OUT	-0.5~6	V
Input Diode Current	I_IK	-20	mA
Output Diode Current	I_OK	-20	mA
DC Output Current	I_OUT	±50	mA
DC V_CC/ground Current	I_CC	±50	mA
Power Dissipation	P_D	200	mW
Storage Temperature Range	T_stg	-65 ~150
Lead Temperature (10s)	T_L	260
