Product Details

Description

Features:

• Operating voltage range: 1.0 ~ 4.0V
• Typical supply current: 1.1mA at 1.4V
• Low battery detection circuit (alarm function): 1.05V
• Voltage regulator: Vreg = 1.0V (Typ.)
• Mixer operating frequency: 10 ~ 50MHz
• High transmitting rate: 1200bps / 2400bps
• FSK Data reception
• Package type: 20-SSOP (0.65mm)

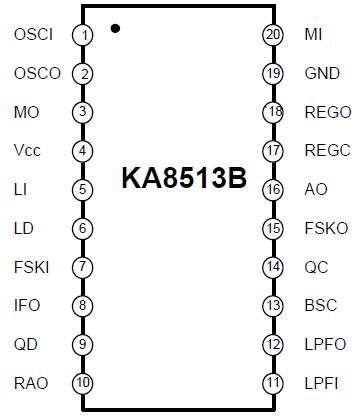

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Supply voltage	V_{CC (MAX)}	4	V
Power dissipation	P_D	80	mW
Operating temperature	T_OPR	- 20 ~ + 70	°C
Storage temperature	T_STG	-55 ~ +150	°C

Description

The KA8513B is designed for FM IF Detection on the pager set. It includes a voltage regulator, low battery detection circuitry, Mixer, Oscillator, FSK comparator and limiting IF Amplifier.
