KA8501A

Features: · Adjusts sending and receiving attenuation length· Regulated voltage for dialer· Linear interface for DTMF· Suitable for ceramic transducers· Mute functionPinoutSpecifications Parameter Symbol Value Unit Line Voltage (3msec max) VL 22 V Forward Line C...

product image

KA8501A Picture
See larger image
SeekIC No. : 004383829 Detail

KA8501A: Features: · Adjusts sending and receiving attenuation length· Regulated voltage for dialer· Linear interface for DTMF· Suitable for ceramic transducers· Mute functionPinoutSpecifications Parame...

KA8501A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KA8501A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Adjusts sending and receiving attenuation length
· Regulated voltage for dialer
· Linear interface for DTMF
· Suitable for ceramic transducers
· Mute function


Pinout

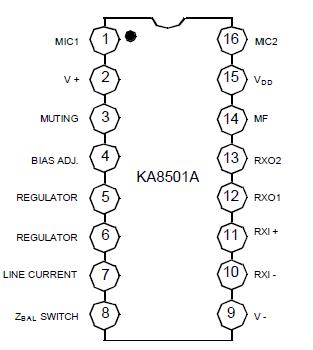

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Line Voltage (3msec max)
VL
22
V
Forward Line Current
ILF
150
mA
Reverse Line Current
ILR
-150
mA
Power Dissipation (Ta = 70°C)
PD
1
W
Operating temperature
TOPR
- 45 ~ + 70
°C
Storage temperature
TSTG
-65 ~ +150
°C



Description

The KA8501A is a telephone speech network integrated circuit which includes transmit amp, receive amp, DTMF amp, voltage regulator, line equalizer, voltage comparator. It handles the voice signal, performing the 2/4 wires interface and changing the gain on both sending and receiving amplifiers to compensate the line current. The KA8501A can work in fixed gain mode.
