ITAxxB1

Features: ` High surge capability Transil array: IPP = 40 A (8/20s)` Peak pulse power : 300 W (8/20s)` Up to 5 bidirectional Transil functions` Low clamping factor (VCL / VBR) at high current level` Low leakage current` ESD protection up to 15kVApplication· RS-232· RS-423· RS-422· RS-485PinoutSpec...

product image

ITAxxB1 Picture
See larger image
SeekIC No. : 004381321 Detail

ITAxxB1: Features: ` High surge capability Transil array: IPP = 40 A (8/20s)` Peak pulse power : 300 W (8/20s)` Up to 5 bidirectional Transil functions` Low clamping factor (VCL / VBR) at high current level`...

ITAxxB1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ITAxxB1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High surge capability Transil array: IPP = 40 A (8/20s)
` Peak pulse power : 300 W (8/20s)
` Up to 5 bidirectional Transil functions
` Low clamping factor (VCL / VBR) at high current level
` Low leakage current
` ESD protection up to 15kV


Application

· RS-232
· RS-423
· RS-422
· RS-485


Pinout

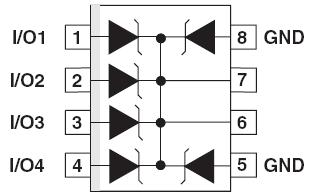

Connection Diagram


Specifications

Symbol Parameter Value Unit
PPP Peak pulse power (8/20s) (see note 1)
Tj initial = Tamb		 300 W
IPP Peak pulse current (8/20s) (see note 1)
Tj initial = Tamb		 40 A
I2t Wire I2t value (see note 1) 0.6 A2s
Tj Maximum operating junction temperature 125 °C
Tstg Storage temperature range -55 to +150 °C
TL Maximum lead temperature for soldering during 10 s at 5mm for case 260 °C



Description

Transil diode arrays ITAxxB1 provide high overvoltage protection by clamping action. ITAxxB1 Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC's.

The ITA series ITAxxB1 combines high surge capability against energetic pulses with high voltage performance against ESD.
