IPS5551T

IC MOSFET HS PWR SW 100A TO-220

product image

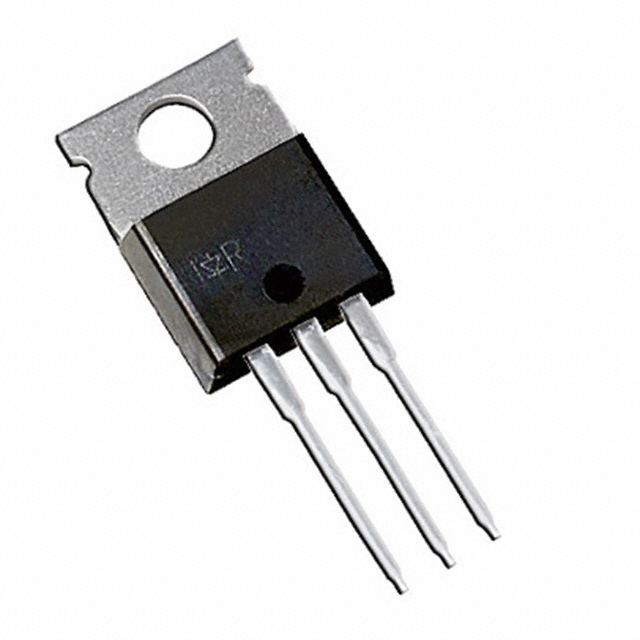

IPS5551T Picture
SeekIC No. : 003566533 Detail

IPS5551T: IC MOSFET HS PWR SW 100A TO-220

floor Price/Ceiling Price

Part Number:
IPS5551T
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: International Rectifier
Type: High Side Input Type: Non-Inverting
Number of Outputs: 1 Package / Case : SSOP-20
On-State Resistance: 4.6 mOhm Current - Output / Channel: 35A
Current - Peak Output: 100A Voltage - Supply: 6 V ~ 18 V
Operating Temperature: -40°C ~ 150°C Mounting Type: Through Hole
Package / Case: Super-220?-3 (Straight Leads) Supplier Device Package: SUPER-220? (TO-273AA)

Description

Series: -
Type: High Side
Input Type: Non-Inverting
Number of Outputs: 1
Current - Output / Channel: 35A
Mounting Type: Through Hole
Packaging: Tube
Operating Temperature: -40°C ~ 150°C
Manufacturer: International Rectifier
Current - Peak Output: 100A
Voltage - Supply: 6 V ~ 18 V
Package / Case: Super-220?-3 (Straight Leads)
Supplier Device Package: SUPER-220? (TO-273AA)
On-State Resistance: 4.6 mOhm


Features:

• Over temperature shutdown
• Over current shutdown
• Active clamp
• Input referenced to + Vcc
• E.S.D protection
• Input referenced to Vcc



Pinout

  Connection Diagram


Specifications

Symbol Parameter Min. Max. Units Test Conditions
Vcc -Vin max Maximum input voltage -0.3 30 V
Vcc -Vin1 max Max. transient Input voltage (less than 1s) -0.3 40
Iin max Maximum input current -1 20 mA
Vcc -Vout max Maximum output voltage -0.3 40 V
Isd cont. Diode max. continuous current (1)
(rth = 62/W)
- 2.8 A
Isd1 cont. Diode max. continuous current (1)
(rth = 5/W)
- 35
Isd pulsed Diode max. pulsed current (1) - 100
Pd Power dissipation (rth = 62/W) - 2 W
ESD1 Electrostatic discharge voltage (Human Body) - tbd kV C = 100 pF, R = 1500Ω
ESD2 Electrostatic discharge voltage (Machine Model) - tbd C = 200 pF, R = 0Ω, L=10µH
T stor. Max. storage temperature -55 150
Tj max. Max. junction temperature -40 150
Tlead Lead temperature (soldering 10 seconds) - 300


Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are referenced to Vcc lead. (Tj = 25 unless otherwise specified). PCB mounting uses the standard footprint with 70µm copper thickness




Description

The IPS5551T is a fully protected three terminal high side switch with built-in short-circuit, over-temperature, ESD protection, inductive load capability. The input signal is referenced to Vcc. When the input voltage Vcc - Vin is higher than the specified threshold, the output power MOSFET is turned on. When the Vcc - Vin is lower than the specified Vil threshold, the output MOSFET is turned off. Input noise immunity of the IPS5551T is improved by an hysterisis. When the input is left floating, an internal current source pulls it up to Vcc. The over-current protection latches off the high side switch if the output current exceeds the specified Isd. The over-temperature protection latches off the switch if the junction temperature exceeds the specified value Tsd. The device is reset by opening the input pin high.




Parameters:

Technical/Catalog InformationIPS5551T
VendorInternational Rectifier
CategoryIntegrated Circuits (ICs)
Package / CaseSuper-220?-3 (Straight Leads)
Mounting TypeThrough Hole
TypeHigh Side
Voltage - Supply6 V ~ 18 V
On-State Resistance4.6 mOhm
Current - Output / Channel35A
Current - Peak Output100A
PackagingTube
Input TypeNon-Inverting
Number of Outputs1
Operating Temperature-40°C ~ 150°C
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names IPS5551T
IPS5551T
