IPS511

Series: -
Type: High Side
Input Type: Non-Inverting
Number of Outputs: 1
Mounting Type: Through Hole
Packaging: Tube
Package / Case: TO-220-5
Operating Temperature: -40°C ~ 150°C
On-State Resistance: 110 mOhm
Manufacturer: International Rectifier
Supplier Device Package: TO-220AB (5-LEAD)
Current - Output / Channel: 1.7A
Current - Peak Output: 10A
Voltage - Supply: 5.5 V ~ 35 V


Features:

• Over temperature protection (with auto-restart)
• Short-circuit protection (current limit )
• Active clamp
• E.S.D protection
• Status feedback
• Open load detection
• Logic ground isolated from power ground

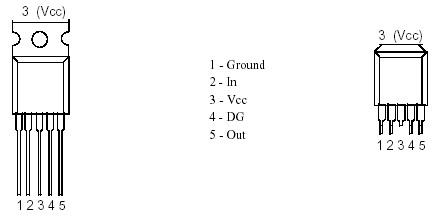

Pinout




Specifications

Symbol	Parameter	Min.	Max.	Units	Test Conditions
Vout	Maximum output voltage	Vcc-50	Vcc+0.3	V
Voffset	Maximum logic ground to load ground offset	Vcc-50	Vcc+0.3
Vin	Maximum Input voltage	-0.3	5.5
Vcc max	Maximum Vcc voltage	-	50
Iin, max.	Maximum IN current	-5	10	mA
Vdg	Maximum diagnostic output voltage	-0.3	5.5	V
Idg, max	Maximum diagnostic output current	-1	10	mA
Isd cont.	Diode max. permanent current (1)	-	2.2	A
Isd pulsed	Diode max. pulsed current (1)	-	10
ESD1	Electrostatic discharge voltage (Human Body)	-	4	kV	C=100pF, R=1500Ω,
ESD2	Electrostatic discharge voltage (Machine Model)	-	0.5		C=200pF, R=0Ω, L=10µH
Pd	Maximum power dissipation(1)			W
	(TC=25) IPS511 (rth=80/W) IPS511S	- -	25 1.56
Tj max.	Max. storage & operating junction temp.	-40	+150
Tlead	Lead temperature (soldering 10 seconds)	-	300

Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are referenced to GROUND lead. (T_j = 25 unless otherwise specified).

Description

The IPS511 are fully protected five terminal high side switches with built in short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback. The output current is controlled when it reaches Ilim value. The current limitation is activated until the thermal protection acts. The over-temperature protection turns off the high side switch if the junction temperature exceeds Tshutdown. It will automatically restart after the junction has cooled 7 below Tshutdown. A diagnostic pin is provided for status feedback of short-circuit, over-temperature and open load detection. The double level shifter circuitry of the IPS511 allows large offsets between the logic ground and the load ground.

Parameters:

Technical/Catalog Information	IPS511
Vendor	International Rectifier
Category	Integrated Circuits (ICs)
Package / Case	TO-220-5 (Straight Leads)
Mounting Type	Through Hole
Type	High Side
Voltage - Supply	5.5 V ~ 35 V
On-State Resistance	110 mOhm
Current - Output / Channel	1.7A
Current - Peak Output	10A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	IPS511 IPS511
