ICS672-01

Features:

• Packaged in 16 pin narrow SOIC
• Input clock range from 10 MHz to 150 MHz
• Clock outputs from up to 84 MHz (ICS672-01)
   and up to 135 MHz (ICS672-02)
• Zero input-output delay
• Integrated x0.5, x1, x2, x3, x4, x5, or x6 selections
• Four accurate (<250 ps) outputs with 0°, 90°,
  180°, and 270° phase shift from ICLK, and one
   FBCLK (0°)
• Separate supply for output clocks from 2.5V to 5V
• Full CMOS outputs (TTL compatible)
• Tri state mode for board-level testing
• Includes Power Down for power savings
• Advanced, low power, sub-micron CMOS process
• 3.3 V to 5 V operating voltage
• Industrial temperature version available

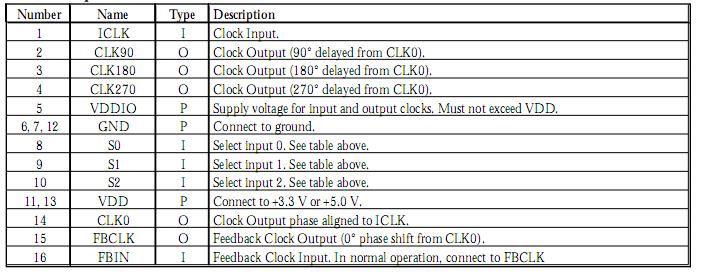

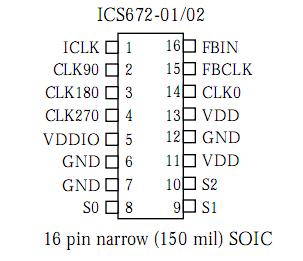

Pinout




Specifications

Parameter	Conditions	Minimum	Typical	Maximum	Units
Supply voltage, VDD & VDDIO	Referenced to GND	-0.5		7	V
Inputs and Clock Outputs	Referenced to GND	-0.5		VDD+0.5	V
Electrostatic Discharge	MIL-STD-883	2000			V
Ambient Operating Temperature		0		70	°C
Ambient Operating Temperature, Industrial	Available on -02 only	-40		85	°C
Soldering Temperature	Max of 10 seconds			260	°C
Junction temperature				150	°C
Storage temperature		-65		150	°C

Description

The ICS672-01 and ICS672-02 are zero delay buffers that generate four output clocks whose phases are spaced at 90° intervals. Based on ICS'
proprietary low jitter Phase Locked Loop (PLL) techniques, each device provides five low skew outputs, with clock rates up to 84 MHz for the  ICS672-01 and up to 135 MHz for the ICS672-02. By providing outputs delayed one quarter clock cycle, the device is useful for systems requiring early or late clocks.

The ICS672-01/02 include multiplier selections of x0.5, x1, x2, x3, x4, x5, or x6.  They also offer a mode to power down all internal circuitry and tri
state the outputs. In normal operation, output clock FBCLK is tied to the FBIN pin.

ICS manufactures the largest variety of clock generators and buffers, and is the largest clock supplier in the world.
