ICS671-06

Features: • Clock outputs from 10 to 133 MHz• Zero input-output delay• Eight low skew (<200 ps) outputs• Device-to-device skew <700 ps• Low jitter (<200 ps)• Full CMOS outputs with 25 mA output drive capability at TTL levels• 5 V tolerant FBIN and...

product image

ICS671-06 Picture
See larger image
SeekIC No. : 004370881 Detail

ICS671-06: Features: • Clock outputs from 10 to 133 MHz• Zero input-output delay• Eight low skew (<200 ps) outputs• Device-to-device skew <700 ps• Low jitter (<200 ps)...

ICS671-06 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS671-06
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Clock outputs from 10 to 133 MHz
• Zero input-output delay
• Eight low skew (<200 ps) outputs
• Device-to-device skew <700 ps
• Low jitter (<200 ps)
• Full CMOS outputs with 25 mA output drive capability at TTL levels
• 5 V tolerant FBIN and CLKIN pins
• Tri-state mode for board-level testing
• Advanced, low power, sub-micron CMOS process
• Operating voltage of 3.3 V
• Industrial temperature range available
• Packaged in 16-pin SOIC
• Available in Pb (lead) free package


Pinout

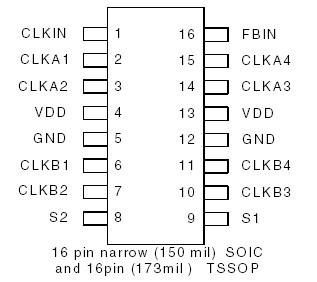

Connection Diagram


Specifications

Item Rating
Supply Voltage, VDD 7V
All Inputs and Outputs -0.5V to VDD+0.5V
CLKIN and FBIN inputs -0.5 V to 5.5 V
Electrostatic Discharge 2000 V
Ambient Operating Temperature -40 to +85°C
Storage Temperature -65 to +150°C
Junction Temperature 125 °C
Soldering Temperature 260°C



Description

The ICS671-06 is a low phase noise, high-speed PLL-based, 8 output, low skew zero delay buffer. Based on ICS' proprietary low jitter Phase-Locked Loop (PLL) techniques, the device provides eight low skew outputs at speeds up to 133 MHz at 3.3 V. The outputs can be generated from the PLL (for zero delay), or directly from the input (for testing), and can be set to tri-state mode or to stop at a low level. For normal operation as a zero delay buffer, any output clock is tied to the FBIN pin.

ICS manufactures the largest variety of clock generators and buffers and is the largest clock supplier in the world.
