ICS650-21

Features: • Packaged in 20 pin tiny SSOP (QSOP)• Lower jitter version of ICS650-01• Operating VDD of 3.3V or 5V• Zero ppm synthesis error in all clocks• Inexpensive 25 MHz crystal or clock input• Provides Ethernet and Fast Ethernet clocks• Provides SCSI cl...

product image

ICS650-21 Picture
See larger image
SeekIC No. : 004370855 Detail

ICS650-21: Features: • Packaged in 20 pin tiny SSOP (QSOP)• Lower jitter version of ICS650-01• Operating VDD of 3.3V or 5V• Zero ppm synthesis error in all clocks• Inexpensive 25 ...

ICS650-21 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS650-21
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 20 pin tiny SSOP (QSOP)
• Lower jitter version of ICS650-01
• Operating VDD of 3.3V or 5V
• Zero ppm synthesis error in all clocks
• Inexpensive 25 MHz crystal or clock input
• Provides Ethernet and Fast Ethernet clocks
• Provides SCSI clocks
• Provides PCI clocks
• Selectable AC97 audio clock
• Selectable USB clock
• OE pin tri-states the outputs for testing
• Selectable frequencies on three clocks
• Duty cycle of 45/55 for Processor clock and Audio clock
• Advanced, low power CMOS process


Pinout

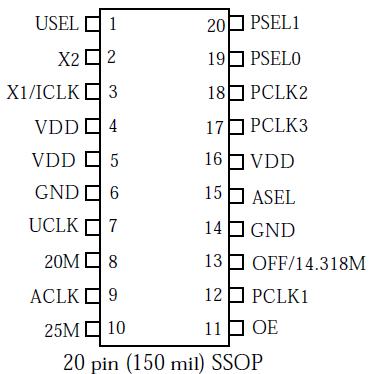

Connection Diagram


Specifications

Parameter Conditions Minimum Maximum Units
Supply voltage, VDD Referenced to GND   7 V
Inputs and Clock Outputs Referenced to GND -0.5 VDD+0.5 V
Ambient Operating Temperature   0 70 °C
Soldering Temperature Max of 20 seconds   260 °C
Storage temperature   -65 150 °C



Description

The ICS650-21 is a low cost, low jitter, high performance clock synthesizer for system peripheral applications. Using analog/digital Phase-Locked Loop (PLL) techniques, the device accepts a parallel resonant 25 MHz crystal input to produce up to eight output clocks. The device provides clocks for PCI, SCSI, Fast Ethernet, Ethernet, USB, and AC97. The user of the ICS650-21 can select one of three USB frequencies, and also one of two AC97 audio frequencies. The OE pin puts all outputs into a high impedance state for board level testing. All frequencies are generated with less than one ppm error, meeting the demands of SCSI and Ethernet clocking.

The ICS650-21 can be mask customized to produce any frequencies from 1 to 150 MHz.
