ICS650-14B

Features: • Packaged in 20 pin (150 mil) SSOP (QSOP)• 25.00 MHz fundamental crystal or clock input• One fixed output clock of one 25.0 MHz• One bank of four frequency selectable output clocks• Three frequency selectable clock outputs• Zero ppm synthesis error in...

product image

ICS650-14B Picture
See larger image
SeekIC No. : 004370854 Detail

ICS650-14B: Features: • Packaged in 20 pin (150 mil) SSOP (QSOP)• 25.00 MHz fundamental crystal or clock input• One fixed output clock of one 25.0 MHz• One bank of four frequency selecta...

ICS650-14B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS650-14B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 20 pin (150 mil) SSOP (QSOP)
• 25.00 MHz fundamental crystal or clock input
• One fixed output clock of one 25.0 MHz
• One bank of four frequency selectable output clocks
• Three frequency selectable clock outputs
• Zero ppm synthesis error in all clocks
• Ideal for networking systems
• Full CMOS output swing
• Advanced, low power, sub-micron CMOS process
• 3.0V to 5.5V operating voltage
• Industrial temperature range available

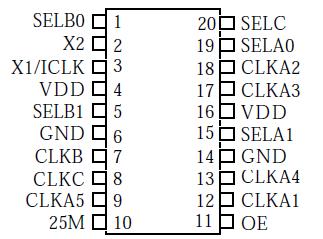

Pinout

Connection Diagram


Specifications

Parameter Conditions Minimum Maximum Units
Supply voltage, VDD Referenced to GND   7 V
Inputs and Clock Outputs Referenced to GND -0.5 VDD+0.5 V
Ambient Operating Temperature   0 70 °C
Ambient Operating Temperature Industrial "I" version -40 85 °C
Soldering Temperature Max of 20 seconds   260 °C
Storage temperature   -65 150 °C



Description

The ICS650-14B is a low cost, low jitter, high performance clock synthesizer customized for networking systems applications. Using analog Phase-Locked Loop (PLL) techniques, the device accepts a 25.0 MHz clock or fundamental mode crystal input to produce multiple output clocks of one fixed 25.0 MHz, a four (plus one) frequency selectable bank, and two frequency selectable clocks. All output clocks are frequency locked together. The ICS650-14B outputs all have 0 ppm synthesis error.
