ICS650-07C

Features: • Packaged in 20 pin narrow (150 mil) SSOP (QSOP)• 12.5 MHz or 25.00 MHz fundamental crystal or clock input• Six output clocks with selectable frequencies• SDRAM frequencies of 67, 83, 100, and 133 MHz• Buffered crystal reference output• Zero ppm synth...

product image

ICS650-07C Picture
See larger image
SeekIC No. : 004370851 Detail

ICS650-07C: Features: • Packaged in 20 pin narrow (150 mil) SSOP (QSOP)• 12.5 MHz or 25.00 MHz fundamental crystal or clock input• Six output clocks with selectable frequencies• SDRAM fr...

ICS650-07C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS650-07C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 20 pin narrow (150 mil) SSOP (QSOP)
• 12.5 MHz or 25.00 MHz fundamental crystal or clock input
• Six output clocks with selectable frequencies
• SDRAM frequencies of 67, 83, 100, and 133 MHz
• Buffered crystal reference output
• Zero ppm synthesis error in all clocks
• Ideal for PMC-Sierra's ATM switch chips
• Full CMOS output swing with 25 mA output drive capability at TTL levels
• Advanced, low power, sub-micron CMOS process
• 3.0V to 5.5V operating voltage

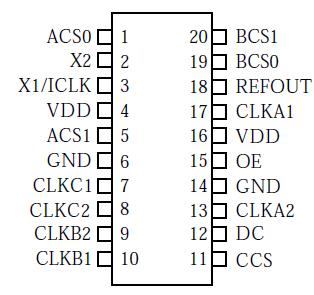

Pinout

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Unit
Supply voltage, VDD
Referenced to GND
7
V
Inputs and Clock Outputs
Referenced to GND
-0.5
VDD+0.5
V
Ambient Operating Temperature
0
70
Ambient Operating Temperature, Iversion
Industrial temp
-40
85
Soldering Temperature
Max of 20 seconds
260
Storage temperature
-65
150



Description

The ICS650-07C is a low cost, low jitter, high performance clock synthesizer for networking applications. Using analog Phase-Locked Loop (PLL) techniques, the device accepts a 12.5 MHz or 25.00 MHz clock or fundamental mode crystal input to produce multiple output clocks for networking chips, PCI devices, SDRAM, and ASICs. The ICS650-07C outputs all have 0 ppm synthesis error.

See the ICS650-07C for non-PLL buffer devices which produce multiple low-skew copies of these output clocks.

See the ICS570, ICS9112-16/17/18 for zero delay buffers that can synchronize outputs and other needed clocks.
