Product Details

Description



Features:

• Packaged in 20 pin tiny SSOP (QSOP)
• Input Frequency of 27.0 MHz
• Zero ppm synthesis error in output clocks
• Provides fixed 13.5 MHz, dual 27.0 MHz, and 54.0 MHz output clocks with a selectable Frame Rate Clock of
   74.175824 MHz or 74.250000 MHz
• Ideal for HDTV applications
• 3.3 V or 5.0 V operating voltage

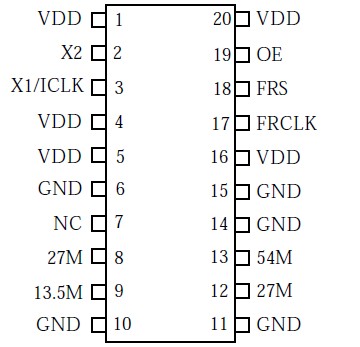

Pinout

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Maximum
Units
Supply voltage, VDD
Referenced to GND
7
V
Inputs and Clock Outputs
Referenced to GND
-0.5
VDD+0.5
V
Ambient Operating Temperature
0
70
°C
Soldering Temperature
Max of 10 seconds
260
°C
Storage temperature
-65
150
°C



Description

The ICS650-05 is a low cost, low jitter, high performance clock synthesizer designed to produce 74.175824 MHz and 74.250000 MHz as necessary for HDTV applications. Using our patented analog Phase-Locked Loop (PLL) techniques, the ICS650-05 uses a 27.0 MHz clock or fundamental crystal input to produce buffered, fixed clocks and a selectable frame rate clock for HDTV systems.
