ICS620-01

Features: • Packaged in 28 pin, 150 mil wide SSOP (QSOP)• Provides all clocks necessary for many digital still camera systems• All clocks are frequency locked together• Interface clock for USB, P1394, or UART• Saves space over multiple crystals and oscillators• ...

product image

ICS620-01 Picture
See larger image
SeekIC No. : 004370844 Detail

ICS620-01: Features: • Packaged in 28 pin, 150 mil wide SSOP (QSOP)• Provides all clocks necessary for many digital still camera systems• All clocks are frequency locked together• Inter...

ICS620-01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS620-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 28 pin, 150 mil wide SSOP (QSOP)
• Provides all clocks necessary for many digital still camera systems
• All clocks are frequency locked together
• Interface clock for USB, P1394, or UART
• Saves space over multiple crystals and oscillators
• Clocks power down when all select pins are low
• Full CMOS outputs also compatible with TTL levels
• +3.3 V or +5 V operation
• Low power, sub-micron CMOS process
• Custom versions available


Pinout

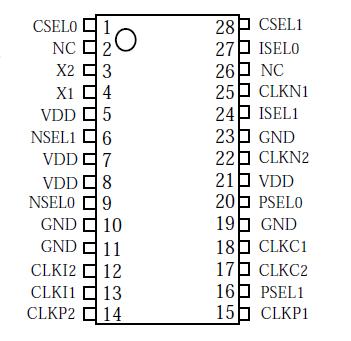

Connection Diagram


Specifications

Parameter Conditions
Minimum
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Inputs and Clock Outputs Referenced to GND
-0.5
VDD+0.5
V
Ambient Operating Temperature
0
70
°C
Soldering Temperature Max of 10 seconds
260
°C
Storage temperature
-65
150
°C



Description

The ICS620-01 is a low cost, low jitter, high performance clock synthesizer for digital still cameras. Using analog Phase-Locked Loop (PLL) techniques, the device uses a 14.318 MHz crystal input to produce multiple output clocks required in the camera. It provides selectable NTSC/PAL clock, a selectable processor clock, a selectable CCD clock, and a selectable interface clocks. Most clocks are generated to a very low ppm synthesis error rate.

All clocks of the ICS620-01 can be turned off using a power down mode. Custom versions with userdefined frequencies and power down modes are available in 6-8 weeks.
