ICS604

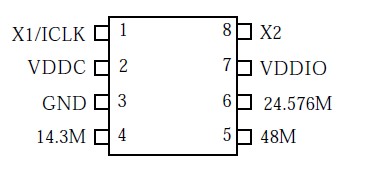

• Packaged as 8 pin SOIC or die
• Compatible with Intel graphics controllers
• Zero ppm synthesis error on 48 MHz output
• Input frequency of 14.31818 MHz
• Output clock frequencies of 48 MHz, 24.576 MHz, plus 14.31818 MHz Reference output
• Low jitter
• Operating voltages of 3.0 to 5.5 V
• Full CMOS-level outputs with 25 mA drive capability at TTL levels
• Advanced, low power CMOS process

The ICS604 is the most cost effective way to generate high quality, high frequency clocks for Intel's latest generation of graphics controllers. It provides 48 MHz for the graphics controller, a 24.576 MHz clock for video or audio, as well as a 14.31818 MHz buffered output for the system clock. Using patented Phase-Locked-Loop (PLL) techniques, the ICS604 requires only a standard fundamental mode, inexpensive crystal.

ICS of the ICS604 makes additional devices to meet multiple graphic system requirements. If the 24.576 MHz clock is not needed, use the ICS513. If additional frequencies are required for different video encoders and decoders, see the ICS614-01.
