Features: ` 5 Volt Read, Program, and Erase Minimizes system-level power requirements` High Performance Access times as fast as 70 ns` Low Power Consumption 15 mA typical active read current 30 mA typical program/erase current 5 µA maximum CMOS standby current` Compatible with JEDEC Standard...
HY29F080: Features: ` 5 Volt Read, Program, and Erase Minimizes system-level power requirements` High Performance Access times as fast as 70 ns` Low Power Consumption 15 mA typical active read current 30 mA t...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

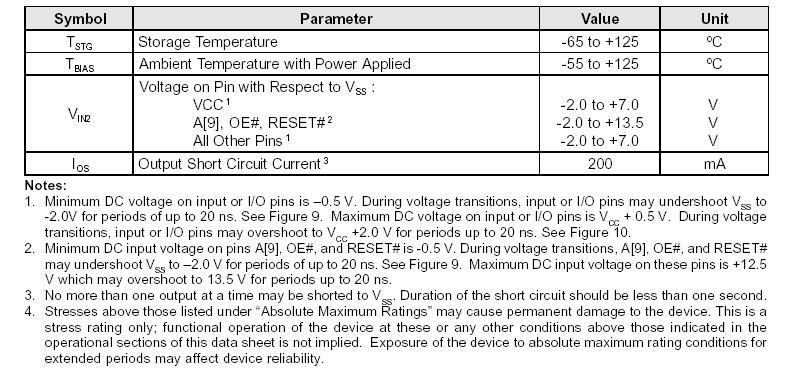

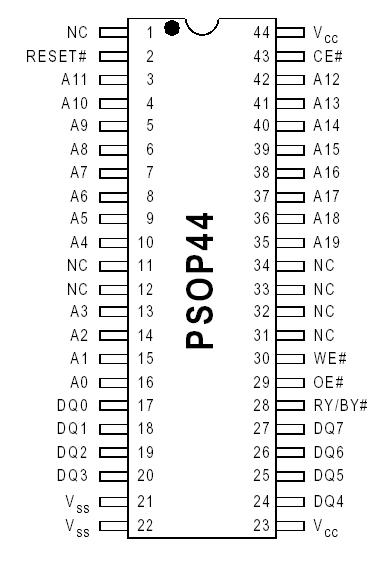

The HY29F080 is an 8 Megabit, 5 volt-only CMOS Flash memory organized as 1,048,576 (1M) bytes of eight-bits each. The device is offered in industry- standard 44-pin PSOP and 40-pin TSOP packages. The HY29F080 can be programmed and erased in-system with a single 5-volt VCC supply. Internally generated and regulated voltages are provided for program and erase operations, so that the device does not require a high voltage power supply to perform those functions. The device can also be programmed in standard EPROM programmers.
Access times as fast as 70ns over the full operating voltage range of 5.0 volts ± 10% are offered for timing compatibility with the zero wait state requirements of high speed microprocessors HY29F080.
To eliminate bus contention, the HY29F080 has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls. The device is compatible with the JEDEC single power-supply Flash command set standard. Commands are written to the command register using standard microprocessor write timings, from where they are routed to an internal state-machine that controls the erase and programming circuits. Device programming is performed a byte at a time by executing the four-cycle Program Command. This initiates an internal algorithm that automatically times the program pulse widths and verifies proper cell margin.
The HY29F080's sector erase architecture allows any number of array sectors to be erased and reprogrammed without affecting the data contents of other sectors. Device erasure is initiated by executing the Erase Command. This initiates an internal algorithm that automatically preprograms the array (if it is not already programmed) before executing the erase operation. During erase cycles, the device automatically times the erase pulse widths and verifies proper cell margin. To protect data in the device from accidental or unauthorized attempts to program or erase the device while it is in the system (e.g., by a virus), the device has a Sector Group Protect function which hardware write protects selected sector groups. The sector group protect and unprotect features can be enabled in a PROM programmer. Temporary Sector Unprotect, which requires a high voltage, allows in-system erasure and code changes in previously protected sectors.
Erase Suspend enables the user to put erase on hold for any period of time to read data from, or program data to, any sector that is not selected for erasure. True background erase can thus be achieved. The device HY29F080 is fully erased when shipped from the factory.
Addresses and data needed for the programming and erase operations are internally latched during write cycles, and the host system can detect completion of a program or erase operation by observing the RY/BY# pin, or by reading the DQ[7] (Data# Polling) and DQ[6] (toggle) status bits. Reading data from the device HY29F080 is similar to reading from SRAM or EPROM devices. Hardware data protection measures include a low VCC detector that automatically inhibits write operations during power transitions.
The host can place the device HY29F080 into the standby mode. Power consumption is greatly reduced in this mode.
