HN62454B

Features: ` Single 5 V supply` High speed - Access time: 85/100 ns (max)` Low power - Active: 440 mW (max) - Standby: 165 W (max)` Directly TTL compatible - All inputs and outputs` Pin compatible with 4 Mbit EPROM (HN27C4096G/CC/CP)PinoutSpecifications Parameter Symbol Value Unit ...

product image

HN62454B Picture
See larger image
SeekIC No. : 004365107 Detail

HN62454B: Features: ` Single 5 V supply` High speed - Access time: 85/100 ns (max)` Low power - Active: 440 mW (max) - Standby: 165 W (max)` Directly TTL compatible - All inputs and outputs` Pin compatible wi...

HN62454B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN62454B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single 5 V supply
`  High speed
     - Access time: 85/100 ns (max)
`  Low power
     - Active: 440 mW (max)
     - Standby: 165 W (max)
`  Directly TTL compatible
     - All inputs and outputs
`  Pin compatible with 4 Mbit EPROM (HN27C4096G/CC/CP)

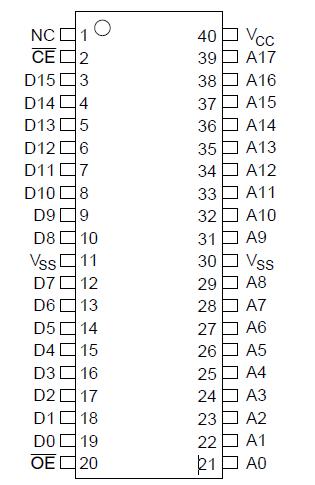

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply voltage*1
VCC
0.3 to +7.0
V
All input and output voltage*1
Vin, Vout
0.3 to VCC + 0.3
V
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Temperature under bias
Tbias
20 to +85
°C
Note: 1. With respect to VSS.


Description

The HN62454B is a 262144 words by 16 bits CMOS Mask Programmable ROM. A high speed access of 85/100 ns (max) is the most suitable to the system using a high speed micro-computer by 16 bits.
