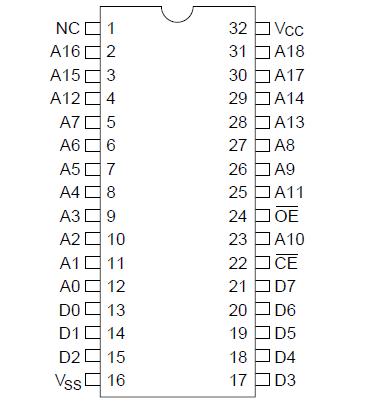

PinoutSpecifications Parameter Symbol Value Unit Note Supply voltage VCC 0.3 to +7.0 V 1 All input and output voltage VT 0.3 to VCC + 0.3 V 1 Operating temperature Topr 0 to +70 °C Storage temperature Tstg 55 to +125 °C ...
HN62334B: PinoutSpecifications Parameter Symbol Value Unit Note Supply voltage VCC 0.3 to +7.0 V 1 All input and output voltage VT 0.3 to VCC + 0.3 V 1 Operat...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter |
Symbol |
Value |
Unit |
Note |
Supply voltage |
VCC |
0.3 to +7.0 |
V |
1 |
All input and output voltage |
VT |
0.3 to VCC + 0.3 |
V |
1 |
Operating temperature |
Topr |
0 to +70 |
°C |
|
Storage temperature |
Tstg |
55 to +125 |
°C |
|
Temperature under bias |
Tbias |
20 to +85 |
°C |
The HN62334B is a 4-Mbit CMOS mask-programmable ROM organized as 524288 words by 8 bits. Realizing low power consumption, this memory is allowed for battery operation.
