HN62338B

Features: ` Single +5V power supply` Maximum access time: 150 ns (max) Low power consumption: 250 mW (typ) active5 W (typ) standby` Byte-wide data organization` Pin compatible with JEDECPinoutSpecifications Parameter Symbol Value Unit Note Supply voltage VCC 0.3 to +7.0 ...

product image

HN62338B Picture
See larger image
SeekIC No. : 004365098 Detail

HN62338B: Features: ` Single +5V power supply` Maximum access time: 150 ns (max) Low power consumption: 250 mW (typ) active5 W (typ) standby` Byte-wide data organization` Pin compatible with JEDECPinoutSpecif...

HN62338B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN62338B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single +5V power supply
`  Maximum access time: 150 ns (max)
     Low power consumption: 250 mW (typ) active5 W (typ) standby
`  Byte-wide data organization
`  Pin compatible with JEDEC

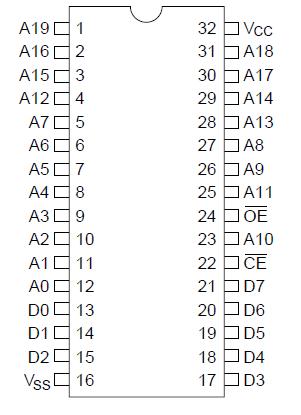

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Note
Supply voltage
VCC
0.3 to +7.0
V
1
All input and output voltage
Vin, Vout
0.3 to VCC + 0.3
V
1
Operating temperature
Topr
0 to +70
°C

Storage temperature
Tstg
55 to +125
°C

Temperature under bias
Tbias
20 to +85
°C

Note: 1. With respect to VSS.


Description

The HN62338B is a 8-Mbit CMOS mask-programmable ROM organized as 1048576 words by 8 bits. In addition, it provides large capacity of 8M bits, is ideally suited for kanji character generators.
