HN62454

Features: ` Single 5 V supply` High speed - Access time: 100 ns (max)` Low power - Active: 330 mW (max) - Standby: 165 W (max)` Byte-wide or word-wide data organization (Switched by BHE terminal)` Three-state data output for or-tying` Directly TTL compatible - All inputs and outputs` Pin compatibl...

product image

HN62454 Picture
See larger image
SeekIC No. : 004365106 Detail

HN62454: Features: ` Single 5 V supply` High speed - Access time: 100 ns (max)` Low power - Active: 330 mW (max) - Standby: 165 W (max)` Byte-wide or word-wide data organization (Switched by BHE terminal)` T...

HN62454 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN62454
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single 5 V supply
`  High speed
     - Access time: 100 ns (max)
`  Low power
     - Active: 330 mW (max)
     - Standby: 165 W (max)
`  Byte-wide or word-wide data organization (Switched by BHE terminal)
`  Three-state data output for or-tying
`  Directly TTL compatible
     - All inputs and outputs
`  Pin compatible with 4 Mbit EPROM (HN27C4000G/FP)


Pinout

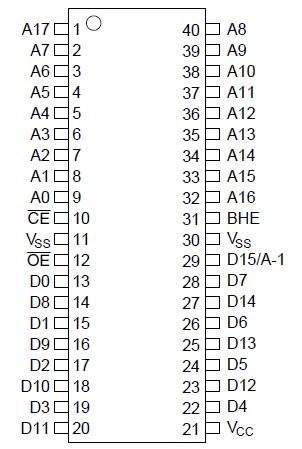

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply voltage*1
VCC
0.3 to +7.0
V
All input and output voltage*1
Vin, Vout
0.3 to VCC + 0.3
V
Operating temperature
Topr
0 to +70
°C
Storage temperature
Tstg
55 to +125
°C
Temperature under bias
Tbias
20 to +85
°C
Note: 1. With respect to VSS.


Description

The HN62454 is a 4-Mbit CMOS mask-Programmable ROM organized either as 262144 words by 16 bits or 524288 words by 8 bits. Realizing low power consumption, this memory is allowed for battery operation. And a high speed access of 100 ns (max) is the most suitable to the system using a high speed microcomputer by 16 bits.
