HMS39C7092

Features: · On-Chip Modular Architecture (using AMBA)· Utilizes the ARM7TDMI 32/16bit RISC Family· 192Kbyte flash memory· 4Kbyte internal SRAM· 8/16-bit external Data Bus· Eight Programmable Chip Select Outputs with external wait input· Low Power Consumption using Power Management Unit· Fully stat...

product image

HMS39C7092 Picture
See larger image
SeekIC No. : 004364849 Detail

HMS39C7092: Features: · On-Chip Modular Architecture (using AMBA)· Utilizes the ARM7TDMI 32/16bit RISC Family· 192Kbyte flash memory· 4Kbyte internal SRAM· 8/16-bit external Data Bus· Eight Programmable Chip Se...

HMS39C7092 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMS39C7092
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· On-Chip Modular Architecture (using AMBA)
· Utilizes the ARM7TDMI 32/16bit RISC Family
· 192Kbyte flash memory
· 4Kbyte internal SRAM
· 8/16-bit external Data Bus
· Eight Programmable Chip Select Outputs with external wait input
· Low Power Consumption using Power Management Unit
· Fully static operation : Max. 50MHz
· Programmable Priority Interrupt Controller (8 external sources)
· Six 16bit Multi Function Timers/Counters for General Purpose Applications
· One 8bit Watch Dog Timer (WDT)
· Two UARTs (Universal Asynchronous Receiver Transmitter) compatible with 16C550 UART
· Programmable Input/Output ports (81-bits)
· 100 TQFP Package


Pinout

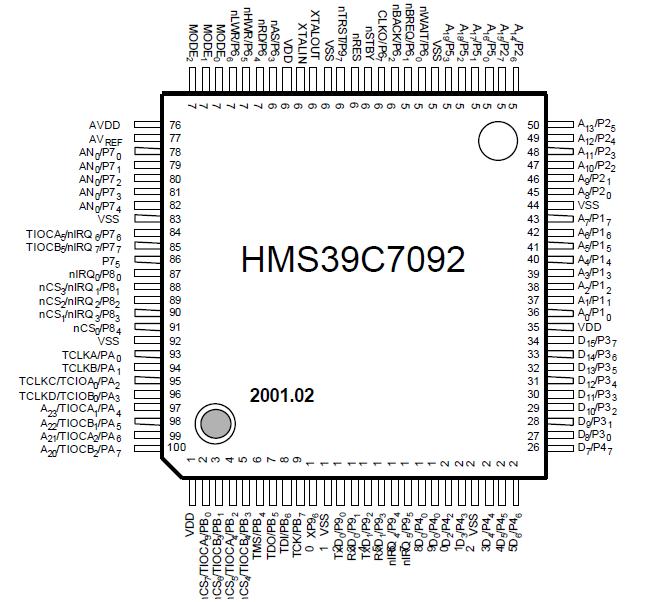

Connection Diagram


Specifications

Item
Symbol
Value
Power supply voltage
VDD
-0.5V to 4.6V
DC Input Voltage (except I/O pins)
VIN
-0.5V to 6.0V
DC Output Voltage (Output in high or low state)
VOUT
-0.5V to VDD+0.5V
DC Output Voltage (output in 3-state)
VOUT
-0.5V to +6.0V
Reference Voltage
VREF
-0.3V to AVDD+0.3
Analog Power supply voltage
AVCC
-0.3V to 3.6V
Analog Input Voltage
VAN
-0.3V to AVDD+0.3
Storage Temperature range
TS
-65 to +150°C



Description

The 16bit MCU HMS39C7092 with embedded flash memory for optical storage is the first member of Hynix Micro Electronics 16/32bit MCU Family of high performance microcontroller units (MCUs). This family includes a series of peripherals from which numerous MCUs are assembled. This MCU contains extensive peripherals : 192Kbytes flash memory, 4K bytes SRAM, 6 channel 16bit Timer, Watch Dog Timer, 2 channel UART, Programmable Priority Interrupt Controller, 81bits PIO, BUS Controller including Chip select logic, which is On-Chip Modular Architecture (using AMBA).
