HMS30C7110

Features: System· 32-bit ARM7 Processor Core with cache· High Speed System Bus & Peripheral Bus· Supports both Big-Endian / Little-Endian modes· JTAG-based debug solutionCache· 4K Byte unified (data + instruction)· 4-way set associative· Write back policy· Read miss fill up· 8 word write buffe...

product image

HMS30C7110 Picture
See larger image
SeekIC No. : 004364842 Detail

HMS30C7110: Features: System· 32-bit ARM7 Processor Core with cache· High Speed System Bus & Peripheral Bus· Supports both Big-Endian / Little-Endian modes· JTAG-based debug solutionCache· 4K Byte unified (...

HMS30C7110 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMS30C7110
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

System
· 32-bit ARM7 Processor Core with cache
· High Speed System Bus & Peripheral Bus
· Supports both Big-Endian / Little-Endian modes
· JTAG-based debug solution
Cache
· 4K Byte unified (data + instruction)
· 4-way set associative
· Write back policy
· Read miss fill up
· 8 word write buffer
Ethernet MAC
· Dual MAC with 10/100Base T
· MII, RMII and 7-wire interface
· 8 Ethernet MAC addresses
· Internal loop-back mode
· Allows programming of PHY active level signal
· Pad insertion for minimum frame size (64 bytes)
· Programmable maximum frame length (up to 2000 bytes)
DMA Controller
· 2-channel programmable DMA
· UART DMA support
UART
· Independent 2-channel Tx/Rx
· Full duplex mode
· Hardware flow control for one channel
· 16 byte internal Rx/Tx FIFOs to reduce data latency
· Even, odd, forced one, and forced zero parity mode
Interrupt Controller
· Handles up to 32 interrupt sources
· Supports hardware priority function
· Programmable IRQ/FIQ mode
SPI
· Operates as master mode
· Configurable address and data width
Timer
· Three channels of 32-bit timer
· Selectable channel clock speed
GPIO
· Up to 13 GPI, 9 GPO (General Purpose Input Output) ports
· Supports external interrupt inputs
Memory Controller
· Supports up to three 4MB banks (Flash/ROM) and one 128MB bank (SDRAM)
· Supports all major SDRAM/ROM/Flash memories
· Supports 32-bit data width for SDRAM
· Supports 8-bit, 16-bit, and 32-bit data width for Flash/ROM
PCMCIA Controller
· Supports 16-bit PC Card host interface
· Supports CardBus
Physical Characteristics
· Operating Voltage: Core 2.5V, I/O 3.3V
· Technology: 0.25um CMOS
· Operating Temperature: 0 ~ 70° C
· Operating Frequency: 70 MHz
· Package Type: 208 PQFP



Pinout

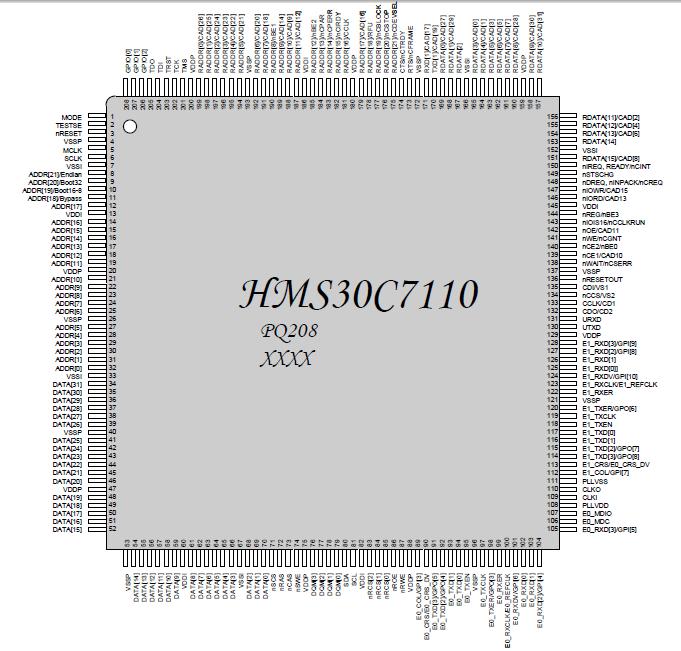

Connection Diagram


Specifications

Parameter
Symbol
Rating
Units
Supply Voltage (Core)
VDDI
TBD
V
Supply Voltage (I/O)
VDDP
TBD
V
DC Input Current
IIN
TBD
MA
Operating Temperature
TOPERATING
0 to 70
Storage Temperature
TSTORAGE



Description

The HMS30C7110® is a low-cost and high performance network processor for telecommunication equipments such as IP sharer, Wireless Local Area Network Access Point (WLAN-AP), Managed switch/Bridge/Hub, routers, and other devices that provide high-speed data networking. It includes an ARM7TDMI processor with unified cache, and common network functions such as dual Ethernet MAC, PCMCIA, and other common peripherals.
