HM-6504

Features:

• This Circuit is Processed in Accordance to MIL-STD- 883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
• Low Power Standby . . . . . . . . . . . . . . . . . . . 125mW Max
• Low Power Operation . . . . . . . . . . . . . 35mW/MHz Max
• Data Retention . . . . . . . . . . . . . . . . . . . . . . . at 2.0V Min
• TTL Compatible Input/Output
• Three-State Output
• Standard JEDEC Pinout
• Fast Access Time. . . . . . . . . . . . . . . . . . 120/200ns Max
• 18 Pin Package for High Density
• On-Chip Address Register
• Gated Inputs - No Pull Up or Pull Down Resistors Required

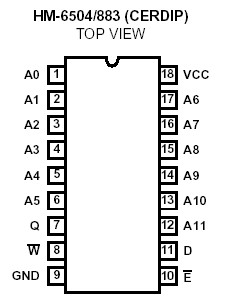

Pinout




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+7.0V
Input, Output or I/O Voltage . . . . . . . . . . .GND -0.3V to V_CC +0.3V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1


Description

The HM-6504/883 is a 4096 x 1 static CMOS RAM fabricated using self-aligned silicon gate technology. The device utilizes synchronous circuitry to achieve high performance and low power operation.

On-chip latches are provided for addresses, data input and data output allowing efficient interfacing with microprocessor systems. The data output of HM-6504/883 can be forced to a high impedance state for use in expanded memory arrays.

Gated inputs allow lower operating current and also eliminate the need for pull up or pull down resistors. The HM-6504/883 is a fully static RAM and may be maintained in any state for an indefinite period of time. Data retention supply voltage and supply current are guaranteed over temperature.
