HI5780

Features:

• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . . 80 MSPS
• Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150mW
• Differential Linearity Error . . . . . . . . . . . . . . . ±0.5 LSB
• TTL/CMOS Compatible Inputs
• Built in Bandgap Voltage Reference
• Power Down and Blanking Control Pins
• Direct Replacement for Sony CXD2306


Application

• Wireless Communications
• Direct Digital Frequency Synthesis
• Signal Reconstruction
• Test Equipment
• High Resolution Imaging and Graphics Systems
• Arbitrary Waveform Generators

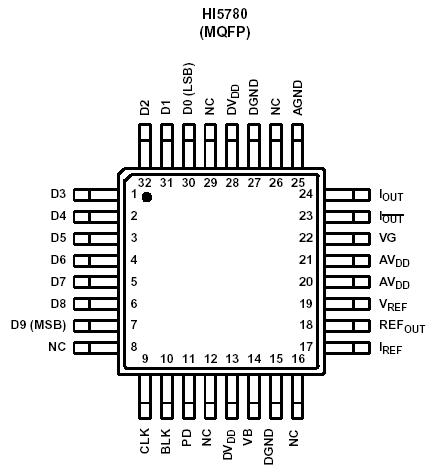

Pinout




Specifications

Supply Voltage V_DD to DGND . . . . . . . . . . . . . . . . . . . . . . . . .+7.0V
Digital Input Voltages (D9-D0, CLK, BLANK, PD) . . . .   V_DD to -0.5V
Internal Reference Output Current . . . . . . . . . . . . . . . . . . ±2.5mA
Reference Input Voltage Range (VREF) . . . . . . . . . . . V_DD to -0.5 V
Analog Output Current (I_OUT) . . . . . . . . . . . . . . . . . . . .. . . . .15mA


Description

The HI5780 is a 10-bit, 80 MSPS, high speed, low power CMOS D/A converter. The converter incorporates a 10-bit input data register with current outputs. The HI5780 includes a power down feature that reduces power consumption and a blanking control. The on-chip bandgap reference can be used to set the output current range of the D/A.
