HI5703

Features:

• Sampling Rate . . . . . . . . . . . . . . . . . . . . . . . . . . 40 MSPS
• 8.55 Bits Guaranteed at fIN = 10MHz
• Low Power
• Wide Full Power Input Bandwidth. . . . . . . . . . . . . 250MHz
• On Chip Sample and Hold
• Fully Differential or Single-Ended Analog Input
• Single Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . +5V
• TTL Compatible Interface
• 3.3V Digital Outputs Available


Application

• Professional Video Digitizing
• Medical Imaging
• Digital Communication Systems
• High Speed Data Acquisition
• Additional Reference Documents
       - AN9534 Using the HI5703 Evaluation Board
       - AN9413 Driving the Analog Input of the HI5702
       - AN9214 Using Intersil High Speed A/D Converters

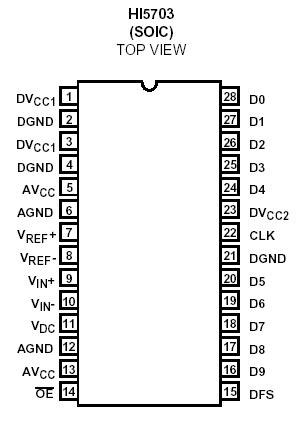

Pinout




Specifications

Supply Voltage, AV_CC or DV_CC to AGND or DGND . . . . . . .. ..  . . +6V
DGND to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V
Digital I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DGND to DV_CC
Analog I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . AGND to AV_CC


Description

The HI5703 is a monolithic, 10-bit, analog-to-digital converter fabricated in Intersil's BiCMOS process. It is designed for high speed applications where wide bandwidth and low power consumption are essential. Its 40 MSPS speed is made possible by a fully differential pipeline architecture with an internal  sample and hold.

The HI5703 has excellent dynamic performance while consuming only 400mW power at 40 MSPS. Data output latches are provided which present valid data to the output bus with a latency of 7 clock cycles. It is pin-to-pin compatible with the HI5702.For lower power consumption or internal reference, please refer to the HI5746 or HI5767.
