HI5702

Features:

• Sampling Rate . . . . . . . . . . . . . . . . . . . . . . . . . 40 MSPS
• 8.3 Bits Guaranteed at fIN = 10MHz
• Low Power
• Wide Full Power Input Bandwidth . . . . . . . . . . 250MHz
• Sample and Hold Not Required
• Single-Ended or Differential Input
• Input Signal Range . . . . . . . . . . . . . . . . . . . . . . . . 1.25V
• Single Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . .+5V
• TTL Compatible Interface


Application

• Professional Video Digitizing
• Medical Imaging
• Digital Communication Systems
• High Speed Data Acquisition

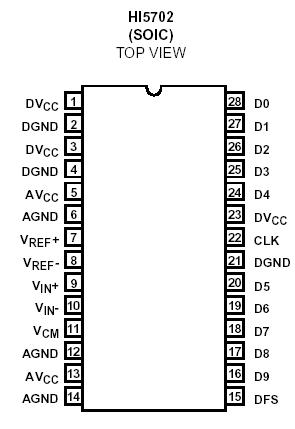

Pinout




Specifications

Supply Voltage, AV_CC or DV_CC to AGND or DGND. . . . . . . . . . . . +6V
DGND to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V
Digital I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DGND to DV_CC
Analog I/O Pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . AGND to AV_CC


Description

The HI5702 is a monolithic, 10-bit, analog-to-digital converter fabricated in a BiCMOS process. It is designed for high speed applications where wide bandwidth and low power consumption are essential. Its 40 MSPS speed is made possible by a fully differential pipeline architecture which also eliminates the need for an external sample and hold circuit. The HI5702 has excellent dynamic performance while consuming <650mW power at 40 MSPS. Data output latches are provided which present valid data to the output bus with a latency of 7 clock cycles.Refer to the HI5703, HI5746, or HI5767 data sheets for lower power consumption.
