HI5760

Features:

• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . . .125MSPS
• Low Power . . . . . . . . . . . . . . . 165mW at 5V, 27mW at 3V
• Power Down Mode . . . . . . . . . . 23mW at 5V, 10mW at 3V
• Integral Linearity Error . . . . . . . . . . . . . . . . . . . . . ±1 LSB
• Adjustable Full Scale Output Current . . . . . 2mA to 20mA
• SFDR to Nyquist at 5MHz Output . . . . . . . . . . . . . .68dBc
• Internal 1.2V Temperature Compensated Bandgap Voltage Reference
• Single Power Supply from +5V to +3V
• CMOS Compatible Inputs
• Excellent Spurious Free Dynamic Range




Application

• Cable Modems
• Set Top Boxes
• Wireless Communications
• Direct Digital Frequency Synthesis
• Signal Reconstruction
• Test Instrumentation
• High Resolution Imaging Systems
• Arbitrary Waveform Generators

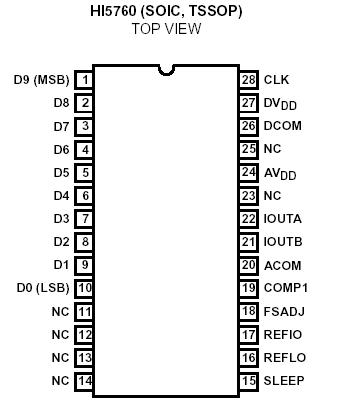

Pinout






Specifications

Digital Supply Voltage DV_DD to DCOM . . . . . . . . . . . . . . . . . . +5.5V
Analog Supply Voltage AV_DD to ACOM. . . . . . . . . . . . . . . . . . +5.5V
Grounds, ACOM TO DCOM. . . . . . . . . . . . . . . . . . . . -0.3V To + 0.3V
Digital Input Voltages (D9-D0, CLK, SLEEP) . . . . . . . . DV_DD + 0.3V
Internal Reference Output Current . . . . . . . . . . . . . . . . . . . ±50µA
Reference Input Voltage Range. . . . . . . . . . . . . . . .. . AV_DD + 0.3V
Analog Output Current (I_OUT) . . . . . . . . . . . . . . . . . . . . . . . . 24mA




Description

The HI5760 is a 10-bit, 125MSPS, high speed, low power, D/A converter which is implemented in an advanced CMOS process. Operating from a single +3V to +5V supply, the HI5760 converter provides 20mA of full scale output current and includes edge-triggered CMOS input data latches. Low glitch energy and excellent frequency domain performance are achieved using a segmented current source architecture. For an equivalent performance dual version, see the HI5728.

This HI5760 complements the CommLink™ HI5X60 family of high speed converters offered by Intersil, which includes 8, 10, 12, and 14-bit devices.
