Product Details

Description



Features:

• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . . 100 MSPS
• Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .650mW
• Integral Linearity Error . . . . . . . . . . . . . . . . . . . . . . . 1 LSB
• Low Glitch Energy . . . . . . . . . . . . . . . . . . . . . . . . . . 1pV-s
• TTL/CMOS Compatible Inputs
• Improved Hold Time . . . . . . . . . . . . . . . . . . . . . . . . 0.25ns
• Excellent Spurious Free Dynamic Range




Application

• Cellular Base Stations
• Wireless Communications
• Direct Digital Frequency Synthesis
• Signal Reconstruction
• Test Equipment
• High Resolution Imaging Systems
• Arbitrary Waveform Generators




Pinout

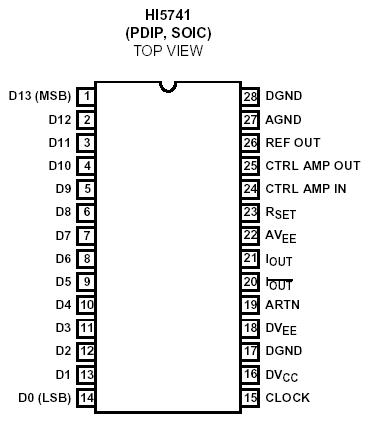

Connection Diagram




Specifications

Digital Supply Voltage VCC to DGND . . . . . . . . . . . . . . . . . . . +5.5V
Negative Digital Supply Voltage DVEE to DGND . . . . . . . . .. . -5.5V
Negative Analog Supply Voltage AVEE to AGND, ARTN . . . . ..-5.5V
Digital Input Voltages (D13-D0, CLK) to DGND. . . . . DVCC to -0.5V
Internal Reference Output Current. . . . . . . . . . . . . . . . . . ±2.5mA
Voltage from CTRL AMP IN to AVEE . . . . . . . . . . . . . . . . 2.5V to 0V
Control Amplifier Output Current . . . . . . . . . . . . . . .. . . . . ±2.5mA
Reference Input Voltage Range. . . . . . . . . . . . . . . . . -3.7V to AVEE
Analog Output Current (IOUT) . . . . . . . . . . . . . . . . .. . . . . . . 30mA




Description

The HI5741 is a 14-bit, 100MSPS, D/A converter which is implemented in the Intersil BiCMOS 10V (HBC-10) process. Operating from +5V and -5.2V, the HI5741 converter provides 20.48mA of full scale output current and includes an input data register and bandgap voltage reference. Low glitch energy and excellent frequency domain performance are achieved using a segmented architecture. The digital inputs are TTL/CMOS compatible and translated internally to ECL. All internal logic is implemented in ECL to achieve high switching speed with low noise. The addition of laser trimming assures 14-bit linearity is maintained along the entire transfer curve.
