Product Details

Description



Features:

• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . . 125 MSPS
• Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .700mW
• Integral Linearity Error . . . . . . . . . . . . . . . . . . . . . 1.5 LSB
• Low Glitch Energy . . . . . . . . . . . . . . . . . . . . . . . . 1.5pV•s
• TTL/CMOS Compatible Inputs
• Improved Hold Time . . . . . . . . . . . . . . . . . . . . . . . . . 0.5ns
• Excellent Spurious Free Dynamic Range
• Improved Second Source for the AD9721


Application

• Wireless Communications
• Direct Digital Frequency Synthesis
• Signal Reconstruction
• HDTV
• Test Equipment
• High Resolution Imaging Systems
• Arbitrary Waveform Generators


Pinout

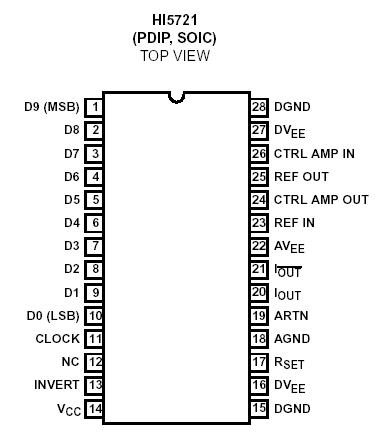

Connection Diagram


Specifications

Digital Supply Voltage VCC to DGND . . . . . . . . . . . . . . . . . . . +5.5V
Negative Digital Supply Voltage DVEE to DGND . . . . . . . . ..  . -5.5V
Negative Analog Supply Voltage AVEE to AGND, ARTN . . . . . . -5.5V
Digital Input Voltages (D9-D0, CLK, INVERT) . . . . . . . VCC to -0.5 V
Internal Reference Output Current. . . . . . . . . . . .. . . . . . . . .500µA
Control Amplifier Input Voltage Range. . . . . . . . .  . . AGND to -4.0V
Control Amplifier Output Current . . . . . . . . . . . . . . . . . . . . ±2.5mA
Reference Input Voltage Range. . . . . . . . . . . . . . . . . -3.7 V to AVEE
Analog Output Current (IOUT) . . . . . . . . . . . . . . . . .  . . . . . . 30mA


Description

The HI5721 is a 10-bit, 125 MSPS, high speed D/A converter. The converter incorporates a 10-bit, input data register with quadrature data logic capability and current outputs. The HI5721 features low glitch energy and excellent frequency domain specifications.
