HGTD10N40F1S

Features: • 10A, 400V and 500V• VCE(ON) 2.5V Max.• TFALL £1.4ms• Low On-State Voltage• Fast Switching Speeds• High Input ImpedanceApplication• Power Supplies• Motor Drives• Protective CircuitsPinoutSpecificationsCollector-Emitter Voltage ...

product image

HGTD10N40F1S Picture
See larger image
SeekIC No. : 004362128 Detail

HGTD10N40F1S: Features: • 10A, 400V and 500V• VCE(ON) 2.5V Max.• TFALL £1.4ms• Low On-State Voltage• Fast Switching Speeds• High Input ImpedanceApplication• Power S...

HGTD10N40F1S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HGTD10N40F1S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 10A, 400V and 500V
• VCE(ON) 2.5V Max.
• TFALL £1.4ms
• Low On-State Voltage
• Fast Switching Speeds
• High Input Impedance


Application

• Power Supplies
• Motor Drives
• Protective Circuits


Pinout

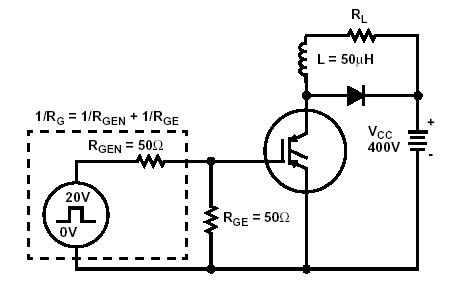

Connection Diagram


Specifications

Collector-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .   VCES 400 500 V
Collector-Gate Voltage RGE = 1MW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .   VCGR 400 500 V
Gate-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  . VGE ±20 ±20 V
Collector Current Continuous at TC = +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  IC25 12 12 A
Collector Current Continuous at TC = +90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  IC90 10 10 A
Power Dissipation Total at TC = +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  PD 75 75 W
Power Dissipation Derating TC > +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  .  0.6 0.6 W/
Operating and Storage Junction Temperature Range . . . . . . . . . . . . .  .TJ, TSTG -55 to +150 -55 to +150


Description

The HGTD10N40F1, HGTD10N40F1S, HGTD10N50F1, and HGTD10N50F1S are n-channel enhancement-mode insulated gate bipolar transistors (IGBTs) designed for high voltage, low on-dissipation applications such as switching regulators and motor drivers. These types can be operated directly from low power integrated circuits.
