FPD87392

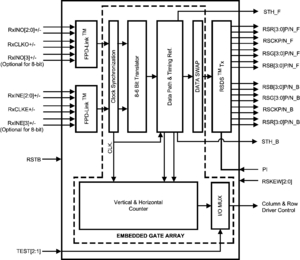

The FPD87392BXB Panel Timing Controller is an integrated FPD-Link + RSDS™ + TFT-LCD Timing Controller. The logic architecture is implemented using standard and default timing controller functionality based on an Embedded Gate Array. The FPD87392 is reconfigurable to the needs of a specific application by providing user-defined specifications or customer supplied VHDL/Verilog code.

The FPD87392BXB is a timing controller that combines an LVDS dual pixel input interface with National's Reduced Swing Differential Signaling (RSDS™) output column driver interface for SXGA, SXGA+ and UXGA resolutions. FPD87392 resides on the TFT-LCD panel and provides the data buffering and control signal generation. The RSDS™ data path to the column driver contributes toward lowering radiated EMI and reduced system dynamic power consumption. The RSDS™ dual 12 pair differential bus conveys up to 24-bit color data for SXGA/SXGA+/UXGA panels when using VESA 60Hz standard timing.
