Features:

 FPD-Link System Interface utilizes Low Voltage Differential Signaling (LVDS).
 Supports Graphics Controllers with Spread Spectrum interfaces for lower EMI
 System programmable via EEPROM
 Suitable for notebook and monitor applications
 8-bit or 6-bit system interface
 XGA or SVGA capable
 Supports single or dual port column drivers
 Programmable outputs provide customized control for standard or in-house column drivers and row drivers
 Programmable slew rate controlled outputs on CD interface for reduced EMI
 Polarity pin reduces CD data bus switching
 CMOS circuitry operates from a 3.3V supply


Pinout

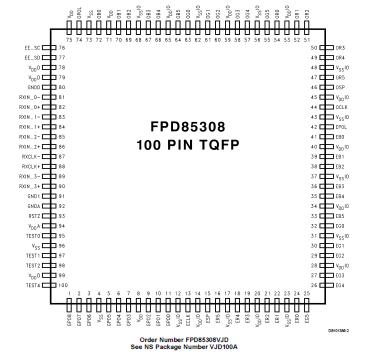

Connection Diagram


Specifications

If Military/Aerospace specified devices are required,please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage (VDD)                                           4.0V
DC Input Voltage (VIN)                 −0.3V to VDD +0.3V
DC Output Voltage (VOUT)           −0.3V to VDD +0.3V
Storage Temperature Range
(TSTG)                                            −65°C to +150°C
Lead Temperature (TL)
(Soldering 10 sec.)                                           260°C
ESD Rating:
(CZAP = 120 pF, RZAP = 1500)
MM = 200V, HBM = 2000V


Description

The FPD85308 Panel Timing Controller is an integrated FPD-Link based TFT-LCD timing controller. FPD85308 resides on the flat panel display and provides the interface signal routing and timing control between graphics or video controllers and a TFT-LCD system. FPD-Link is a low power, low electromagnetic interference interface used between this controller and the host system.

The FPD85308 chip links the panel's system interface to the LCD display via a ten wire LVDS data bus. The data is then routed to the source and gate display drivers. Both XGA and SVGA resolutions are supported.
