FPD85310

Features:

 FPD-Link System Interface utilizes Low Voltage Differential Signaling (LVDS).
 System programmable via EEPROM
 Suitable for notebook and monitor applications
 8-bit or 6-bit system interface
 XGA or SVGA capable
 Supports single or dual port column drivers
 Programmable outputs provide customized control for standard or in-house column drivers and row drivers
 Fail-safe operation prevents panel damage with system clock failure
 Programmable skew rate controlled outputs on CD interface for reduced EMI
 Polarity pin reduces CD data bus switching
 CMOS circuitry operates from a 3.3V supply

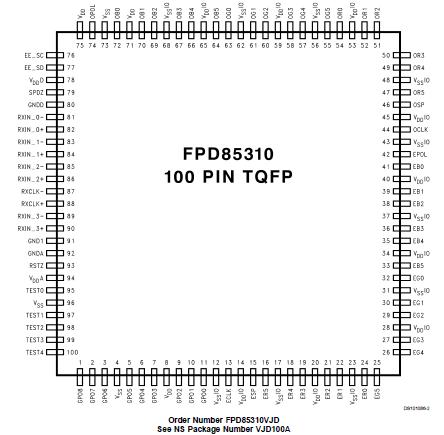

Pinout




Specifications

If Military/Aerospace specified devices are required,please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage (V_DD)                                           4.1V
DC Input Voltage (V_IN)                 −0.5V to V_DD +0.5V
DC Output Voltage (V_OUT)           −0.5V to V_DD +0.5V
Storage Temperature Range
(T_STG)                                            −65°C to +150°C
Lead Temperature (T_L)
(Soldering 10 sec.)                                           260°C
ESD Rating:
(C_ZAP = 120 pF, R_ZAP = 1500)
MM = 200V, HBM = 2000V


Description

The FPD85310 Panel Timing Controller is an integrated FPD-Link based TFT-LCD timing controller. FPD85310 resides on the flat panel display and provides the interface signal routing and timing control between graphics or video controllers and a TFT-LCD system. FPD-Link is a low power, low electromagnetic interference interface used between this controller and the host system.

The FPD85310 chip links the panel's system interface to the display via a ten wire LVDS data bus. That data is then routed to the source and gate display drivers. XGA and SVGA resolutions are supported.
