FPD87310

Features: RSDS (Reduced Swing Differential Signaling) Column Driver bus for low power and reduced EMIDrives RSDS Column Drivers at 130 Mb/s with a 65 MHz clock6- or 8-bit LVDS Video System Interface (FPD-Link)10 General Purpose Outputs for Column/Row DriversOptional EEPROM programming allows fine ...

product image

FPD87310 Picture
See larger image
SeekIC No. : 004343049 Detail

FPD87310: Features: RSDS (Reduced Swing Differential Signaling) Column Driver bus for low power and reduced EMIDrives RSDS Column Drivers at 130 Mb/s with a 65 MHz clock6- or 8-bit LVDS Video System Interface...

FPD87310 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FPD87310
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 RSDS (Reduced Swing Differential Signaling) Column Driver bus for low power and reduced EMI
 Drives RSDS Column Drivers at 130 Mb/s with a 65 MHz clock
 6- or 8-bit LVDS Video System Interface (FPD-Link)
 10 General Purpose Outputs for Column/Row Drivers
 Optional EEPROM programming allows fine tuning in development and production environments
 Selectable dual initialization value sets to share parts for the different model panel module
 Ability to drive XGA/SVGA TFT-LCD Systems
 Narrow 9-bit+CLK differential Column Driver Bus minimizes width of Source PCB
 CMOS circuitry operates from a 3.3V supply
 Supports Graphics Controllers with spread spectrum interface featurefor lower EMI


Pinout

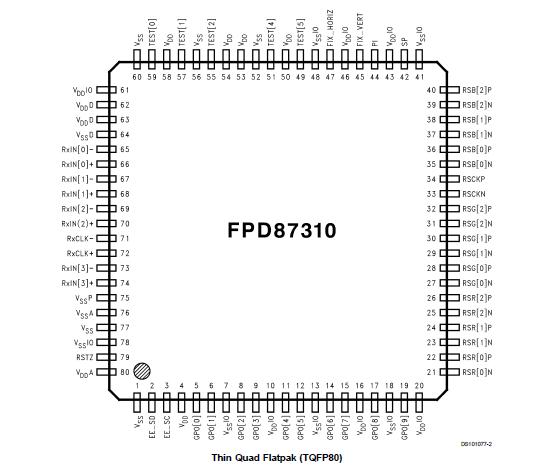

Connection Diagram


Specifications

If Military/Aerospace specified devices are required,please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage (VDD)                                              4V
DC Input Voltage (VIN)                          −0.3V to 4.0V
DC Output Voltage (VOUT)            −0.3V to VDD +0.3V
Storage Temperature Range
(TSTG)                                            −65°C to +150°C
Lead Temperature (TL)
(Soldering 10 sec.)                                           260°C
ESD Rating:
HBM                                                                      ³2kV
MM                                                                     ³200V


Description

The FPD87310 Panel Timing Controller is an integrated FPD-Link + RSDS + TFT-LCD Timing Controller. FPD87310 resides on the Flat Panel Display and provides the interface signal routing and Timing Control between Graphics or Video Controllers
and a TFT-LCD system. FPD-Link, a low power, low EMI (ElectroMagnetic Interference) interface is used between this Controller and the Host system.

A RSDS (Reduced Swing Differential Signaling) Column Driver FPD87310 interface is used between the Timing Controller and the Column Drivers.
